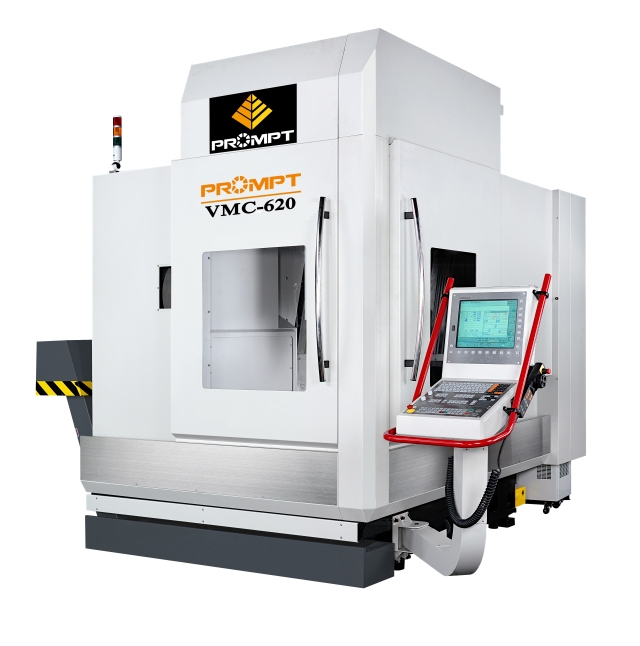

5 AXES MACHINING CENTER

VMC-620
SPECIFICATION
2 axis Table Diameter Ø 600 mm
T-slots geometry Axial
T-slots numbers 5 - n°, 2H7/H11
T-slots dimension 14 mm
T-slots distance - s 100 mm
T-slots height - v 16 mm
T-slots total height - m 26 mm
T-slots width - i 24 mm
Central hole diameter - g Ø 60-H7 ▼ 30
Transmission Ratio Rotary: 1:120
Tilt:1:120
Tilt Angle Range -40°-110°
Maximum Rotation Speed Rotary: 16.6 rpm-1
Tilt: 11.1 rpm-1
Permissible Cutting Force 40 kg-m
Fixed table 820 x 540 mm
T-slot 5 x 18 x 100 mm
Maximum table load 500 kgs
TRAVEL
X / Y / Z-axis 620/520/460 OP: (1520 / 520 / 460 mm)
B.C Axis Rapid Feedrate 25 rpm
Maximum workpiece size Ø520 x 330 L
Spindle Nose To Work Table Surface 140 - 600 mm
MAXIMUM TRAVERSE SPEED 　
X / Y / Z-axis 36 m/min
TOOL (40 TAPER) 24 TOOL 　
Maximum Length 250 mm
Maximum Diameter 76 mm
Without adjacent tool 127 mm
Maximum Each Tool Weight 7 Kgf
Tool Change Time (T - T) 2 seconds (60Hz)
Tool Change Time (C - C) 5 seconds (60Hz)
SPINDLE　
Spindle Taper 40 (DIN, BT, CAT, HSK)
Spindle Motor(Cont/30 min) 10 / 12.5 kw
OTHER　
Air Supply Required 6 kg / square cm
Power Supply Required 55 KVA / 380V
Machine Weight 9000 - 11000 kgs
Packing size 20'FR / 40'HQ
Standard Equipment
Spindle speed 12000rpm
Automatic tool changer
Spindle oil chiller
Spindle taper: #40 (DIN, BT, CAT)
Spindle bearing purge
24 station tool magazine
Programmable cutting air blast system
Roller linear guideways
Coolant gun
Z axis motor with brake system
Air gun
Work lamp
Fully enclosed machining area
M30 power off
Large table size 650mm
Heat exchanger for electrical
cabinet
Interlock front/ side door
Tailstock for tilt table
Mechanical oil/coolant separator
SIEMENS 828D
