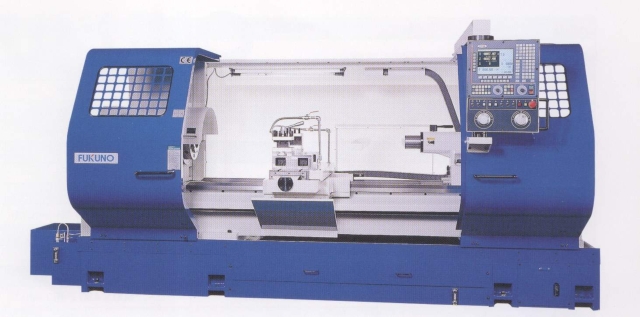

CNC 车床
- 产品型号:
- FL-3060N/3080N/30120N/3560N/3580N/35120N
详细规格及用途描述
Description:
MODEL FL-3060N FL-3080N FL-30120N
Swing over bed (mm/inch) Ø770/30.3"
Swing over cross slide (mm/inch) Ø480/18.9"
Center height (mm/inch) 385mm/15"
Distance between center (mm/inch) 1500/60" 2000/80" 3000/120"
Width of bed (mm/inch) 480/18.9"
Spindle speeds-4 steps (rpm) H1: 387~860
H2: 119~386
L1: 54~118
L2: 25~53
Spindle nose A211
Spindle bore (mm/inch) Ø 155/6.1"
Chuck size (inch) 15"
Longitudinal working stroke-Z axis (mm/inch) 1500/60" 2000/80" 3000/120"
Cross slide working stroke-Z axis (mm/inch) 400/15.7"
Topslide width (mm/inch) 140/5.5"
Size of toolpost shank (mm/inch) 32x32 / 1.3"x1.3"
Tailstock diameter (mm/inch) Ø 105/4.1"
Tailstock travel (mm/inch) 150 / 6"
Tailstock taper MT6
Spindle motor 20HP 25HP(optional)
Drives (X,Y) AC SERVO
Rapid traverse X/Z 5/10 m/min (200/400 ipm)
Range of feeds in manual mode 0.01~500 mm/rev
0.004~19.68 in./rev
Coolant pump motor 1/4 HP
Machine weight (kg/lbs) 5400/11800 5900/12980 6700/14740
Packing Measurement 3060N: 3985x2240x2220/157"x88"x87.4"
3080N: 4485x2240x2220/176.6"x88"x87.4"
30120N: 5485x2240x2220/216"x88"x87.4"
MODEL FL-3560N FL-3580N FL-35120N
Swing over bed (mm/inch) Ø900/35.4"
Swing over cross slide (mm/inch) Ø 610
Center height (mm/inch) 450mm/17"
Distance between center (mm/inch) 1500/60" 2000/80" 3000/120"
Width of bed (mm/inch) 480/18.9"
Spindle speeds-4 steps (rpm) H1: 387~860
H2: 119~386
L1: 54~118
L2: 25~53
Spindle nose A211
Spindle bore (mm/inch) Ø 155/6.1"
Chuck size (inch) 15"
Longitudinal working stroke-Z axis (mm/inch) 1500/60" 2000/80" 3000/120"
Cross slide working stroke-Z axis (mm/inch) 400/15.7"
Topslide width (mm/inch) 140/5.5"
Size of toolpost shank (mm/inch) 32x32 / 1.3"x1.3"
Tailstock diameter (mm/inch) Ø 105/4.1"
Tailstock travel (mm/inch) 150 / 6"
Tailstock taper MT6
Spindle motor 25HP
Drives (X,Y) AC SERVO
Rapid traverse X/Z 5/10 m/min (200/400 ipm)
Range of feeds in manual mode 0.01~500 mm/rev
0.004~19.68 in./rev
Coolant pump motor 1/4 HP
Machine weight (kg/lbs) 5600/12320 6160/13420 7100/15620
Packing Measurement
