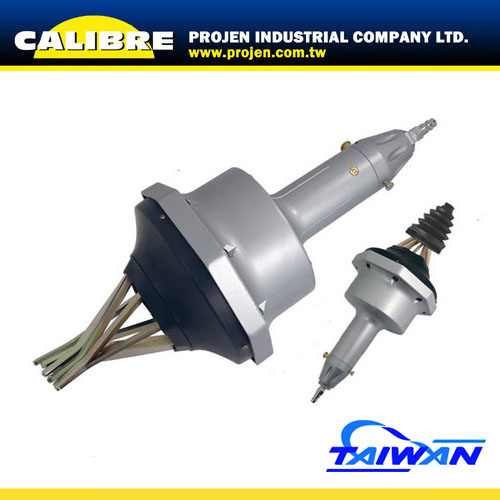

CALIBRE AIR Powered CV Boots Installation Tool
- 产品型号:
- CA002613
详细规格及用途描述
CV Joint diameters: 25-110mm
Weight: 3.25kgs
Working Pressure:5-8 Bar( 72-113psi or 5-8kg/㎡)
Max. Air pressure:9 Bar(125psi or 9kg/㎡)
Air Inlet: 1/4” BSP
Feature:
Air Powered
This Boot Tool is used for the stretching of flexible rubber CV boots onto automotive drive-shaft as assemblies
Instruction:
Put the CV boots on the front jaws. And ensure the jaws hold CV boots firmly.
Press the pressure switch, then the front jaws will open to max diameter 110mm.
Put the CV boots into the CV joint, then press the release bottom to release the CV boots onto the CV joint
