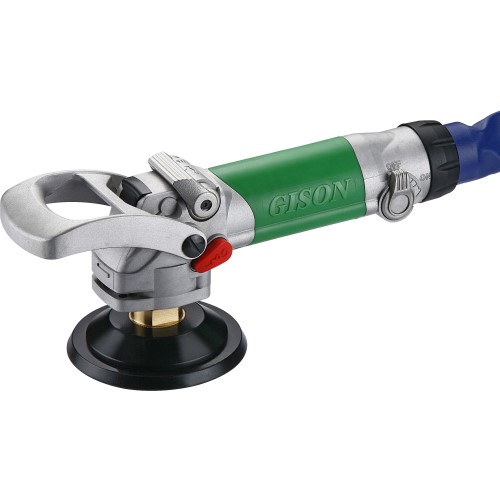

Wet Air Polisher,Sander for Stone (3600rpm, Rear Exhaust, ON-OFF Switch)
- 产品型号:
- GPW-221
- 原产地:
- 台湾
详细规格及用途描述
Pneumatic Water Stone Sanders,Polishers, Air Wet Polisher
Air Water Sander
Air Water Polisher
Pneumatic Wet/Waterfeed Stone Polisher
Specification:
•Rear Exhaust, ON-OFF Switch
•Spindle Size : 5/8-11, M14
•Pad Size : 3" or 4"
•Max. Free Speed : 3,600 rpm
•Max. Horse Power : 0.52 HP (388W)
•Weight : 1.52 kgs
•Length : 285 mm
•Air Cons : 0.44 m3/min (15.5 cfm)
•Hose Size : 6.5 mm(I.D.)
•Sound Pressur : 80 dBA
•Vibration : < 2.5 m/sec2
•Air Pressure : 90 psi
•Packing : 8 pcs/1.3cu.ft/G:21 kgs
•* with Air Hose / Water Hose *
The benefits of Spanner-Free (Shaft Lock) system :
•The Spanner-Free (Shaft Lock) system button makes it an easy job to change the backing pad.
•Spanner-Free system can extend the life of gear. Because the user replace the wet diamond polishing pad quickly and hook and loop's problem, a diamond polishing pad is often attached off-center on the backing pad, ex. a little bit away from the spindle, and when such a pad is rotated fast and pressed against the stone surface, the drive shaft gets affected and damages a gear.
•With the Spanner-Free system, user don't need to worry about the life of hook and loop on the backing pad.
•Spanner-Free system has Safety design, it can prevent user mistakenly pressing the lcok button when this wet air polisher start.
User can prepare more backing pads, and every backing pads stick different grit wet diamond polishing pads firstly. When you are polishing and want to switch to a different grit wet diamond polishing pad, you can use this Spanner-Free system to change the backing pad quickly. It can save time and avoid wet air polisher and hook and loop of backing pad damage.
Features:
•Spanner-Free (Shaft Lock) button makes it an easy job to change the backing pad.
•Front thumb-adjustable water knob enhances the tool control.
•No visible water tube and screw make a seamless smooth touch and no more break risk when dropping.
•Detachable rotor and gear design brings you an economical repair.
•Enlarged cylinder provides you with more sandig power.
•Don't use polishing pads bigger than 100 mm (4"). The 125 mm (5") is easy to cause damage to the tool.
Applications:
•The GISON GPW-221 pneumatic wet polishing tool is designed for continuous production applications and improved safety. Cast from aircraft aluminum. The watertight sealed bearings provide long life and smooth rotational speeds. The water and air controls are simple to use and conveniently located. Rear air vent removes exhaust through a hose protector, away from operator's hands.
•GPW-221 Wet Air Sander / Wet Air Polisher is suitable for sanding / polishing of granite, marble, porcelain and engineered stone, other types of stones and glass fiber (fiberglass). The tool is a poweful, reliable air tool ideally suited for continuous wet polishing in stone industry, and is safer when used wet ! Made in Taiwan.
