14轴连动加工双程式系统的车铣复合式CNC车床

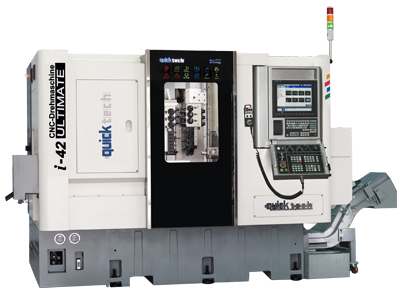

The i-42 Ultimate designation comprises of 10 axis and 4 spindles which includes a sub spindle with both X and Z positioning. This also marks the integration of the driven tools having a powerful B- axis milling for simultaneous and efficient machining. Due to this enhancement, the tools application becomes more fast and flexible for complicated parts.

HIWIN 35mm guide way C3 class ballscrew.
C3 class hardened and precise ground ball screw ensure the highest precision and speed.

P4 class preload spindle bearing.
Preload bearings are offered for the maximum attachment effect.

Tilting Motorized Tools
The milling head comprises of 12 motorized tools for 360°continuous leads to even greater flexible tools arrangement and significantly efficient productivity for small and medium lot sizes.

Robust FC35 Meehanite Castings
Harden to over HRB 190 and tempered to relieve stress.

SYNCHRONOUS SPINDLES
Both main and sub spindle can be synchronized for parting off operations, or can be used for turning longer work pieces.
By synchronizing, transfer of the part from main to sub spindle is precise, and alignment of critical dimensions can be realized.
Synchronizing can be achieved to an accuracy of 0.02 degrees while the spindles are in motion.

Dual B-axis
i-42 Ultimate.

Single B-axis
i-42 Ultimate.

No B-axis
i-42 Ultimate.
