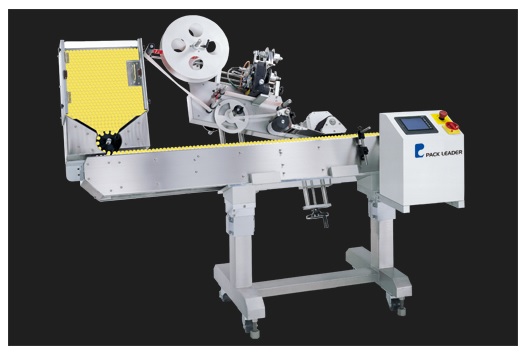

Horizontal Wrap Around Labeling Machine
- 产品型号:
- PL-521
详细规格及用途描述
Introduction---
Unique Horizontal Labeling Structure
Fast, firm and precise. PL-521 horizontal wrap around automatic labeling machine ensures most precise labeling on the container and eliminates the skewing of label on it to achieve the excellent labeling efficiency.
Extreme Excellent Adaptability
PL-521 horizontal wrap around automatic labeling machine has fewer moving parts, and adjustments are easily made. Easy size change-over to handle containers with different diameters.
PL-521 horizontal wrap around automatic labeling machine is designed to label unwieldy round containers horizontally oriented with a full or partial wrap label such as pharmaceutical ampoules, medicinal bottles, test tubes and other small cylindrical containers. With long term machinery experience, Pack Leader manufactured this labeler by improvement continuously. This labeler is done horizontally with walking feeder equipped with in-feeder and collection mechanism depends on requirements to manage the whole continuous procedure in high speed.
By means of the skillful auto feeder design and slanted conveyor made from special engineering plastic roller to avoid damage to fragile containers like glass ampoules and vials. The perfect wrap around system ensures most precise labeling on the container and eliminates the skewing of label on it to achieve the excellent labeling efficiency. It has fewer moving parts, and adjustments are easily made. Easy size change-over to handle containers with different diameters. This labeler can dispense up to 10-25mm diameter bottles and be equipped with printer for option.
Machine Structure---
1.Quality & Beauty
The main labeler structure is manufactured from S304 stainless steel with anodized process and high quality aluminum. It is complied with GMP standard that provides easy maintenance and for a long durable life. Top chain made by FRP chain material and hard-wearing UPE guide rail applied for the conveyer system is designed to be the product appearance protected and efficient performance. It also increases with years of reliable long term use.
2.Modular Design
It is for modular design of the machine structure and all components are standardized and unitized. Parts can be easily adapted with various demands and bring out the best efficiency.
3.Simple Mechanism Adjustment
PL-521 horizontal wrap around automatic labeling machine provides a little or big wide adjustment by equipped with hand wheel mechanism for easy adjustment of applicator. This labeler would also provide flat and smooth labeling depended on product sizes and labeling position by suitable wrap station adjustment.
4.Rigid Machine Base
Double square foot stands was made from stainless steel. It is steady and does not take a lot of room. When machine working, it would not quake and affect the labeling action.
Operation & Functions
5.Production Preset Function
A built-in counter can either run freely keeping track of the number of products labeled to control the production or can be used in batch mode where the labeler automatically stops when the desired numbers of products have been labeled for efficient production management.
6.Smart Label Length Setting Function
Quick set counter for desired length and perfect positioning of label.
7.Easy Operation
PLC based on Personalize control panel with large and advanced touch screen. Easy learning controlling panel is for simple operation with common sense.
8.In Built Instructions And Trouble Shooting
In-built instruction is provided for learning from the panel\'s instructions. It would reduce the personnel training time by training and operating at the same time. It could provide flexible arrangement for personnel to attain the most efficient production to obviate the possibility of personnel movement. And in built trouble shooting is to assist operators to provide a prompt solution for operation problem and quickly reverted to avoid any shutdown cost.
9.Strict Quality Control
Pack Leader products are manufactured under strict ISO 9001 quality control procedure and also strictly tested by the European CE standard and UL perfectly meet safety quality regulations.
10.30 Lots Cross Memory Module
Record the best labeling setting method for the best productivity. It is convenience for each production line of multiple products. Even for different person, it would also get into condition quickly.
11.Missing Label Set
Prevent product miss-labeled to ensure product accuracy while production and fulfill production QC procedure.
12.Labeling Delay Function
It is Ideal for small scale adjustment and could do Calculate digitally for dispensing speed and position. It offers quick and easy set up through its advanced touch screen control in addition to its clean, precise and accurate labeling applications.
13.Auto Labeling Start Up Mode
While the power been switch on, the machine will enter labeling condition automatically for the same production as previous run and no need for further setting, this mode can tremendously save operator\'s setting time and increase the production efficiency
14.Eight Synchronized Speeds Selection
Enable dispensing speed and conveyer speed fully synchronized for the most precise labeling effect.
Specifications---
Supply voltage: 220/110 VAC 50/60Hz 1Phase
Power consumption: 840 VA
Dispensing Speed: 40m/min max.
Bottle size: 10 ━ 24mm diameter
Applicator Height: 150mm
Label size: 150mm x 75mm max.
Conveyor Width: 100mm
Spool Diameter: 76mm
Dimension: 2000mm (L) x 1100mm(W) x 1550mm(H)
---Specifications are subject to change without prior notice----
