Vacuum Clamping Kit
- 产品型号:
- VCS1 / VCS2
详细规格及用途描述

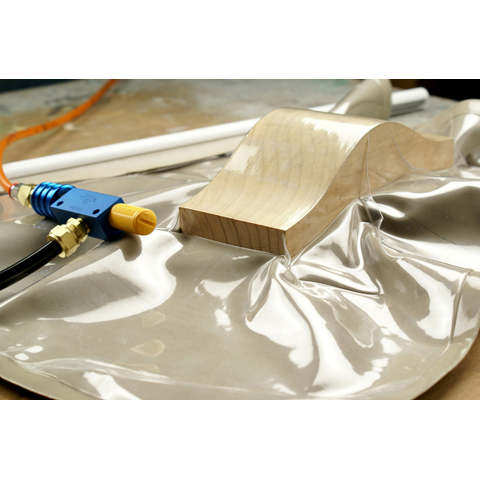

Let the power of vacuum work for you. 3 CFM of compressed air (115 psi) generates up to 23" Hg vacuum. All you need for vacuum for forming veneers and gluing panels. The heavy duty bag is the perfect size for many projects.
(VCS1)
24" X 24" kit includes:
/ Vacuum Generation, ON/OFF Valve, Exaust muffler
/ 24"x24" Vacuum Bag 20m/l
/ White Hose:pvc 23.5 x 20.5 x 780mm
/ Gray Hose:pvc 17.5 x 14.5 x 780mm
(VCS2)
48" X 48" kit includes:
/ Vacuum Switch Generation, ON/OFF Valve, Exaust muffler
/ 48"x48" Vacuum Bag 20m/l
/ White Hose:pvc 23.5 x 20.5 x 1420mm
/ Gray Hose:pvc 17.5 x 14.5 x 1420mm
