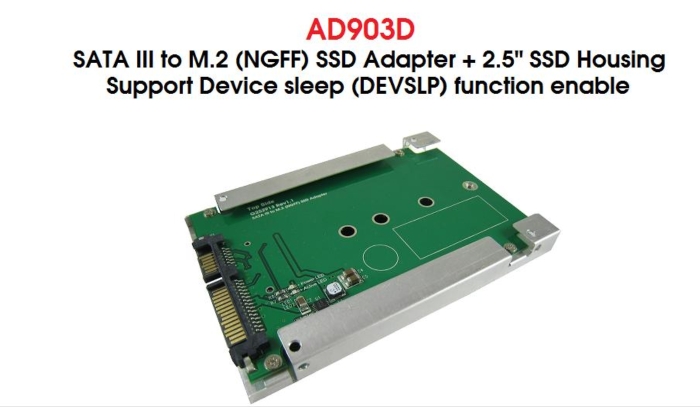

AD903D

AD903D is SATA III to M.2(NGFF) Storage adapter, providing one 7+15pin connector on the host connection and one 67pin B key M.2 connector on the SSD storage devices connections. When assembled, it can operate in a variety of operating systems. Such as DOS, Windows 95, 98, XP, 2000, Vista, Win 7, Linux, Unix, and so on.

AD903D adapter allows the installation of SSD as system disk, boot the operating system directly, without having to install any drivers, but does not affect the execution speed of the SSD storage devices.

Specifications：
•2.5"/9.5mm(H) SSD Form Factor
•M.2 (NGFF) to SATA III Module
•DEVSLP Assignment on Standard SATA Connector
SATA Power Pin 3 definition for Device Sleep Pin
•Green LED indicates the M.2 (NGFF) SSD's power status
•Red LED indicates the M.2 (NGFF) SSD's active status
•Support SATA Reversion 3.2
•Compliant with PCI Express M.2 Specification Version 1.0
•PWM synchronous buck converter Power IC
3A maximum output current
Short circuit protection
In-rush current suppression
Thermal shutdown protection
ESD HBM (Human Body Mode) / 2KV
