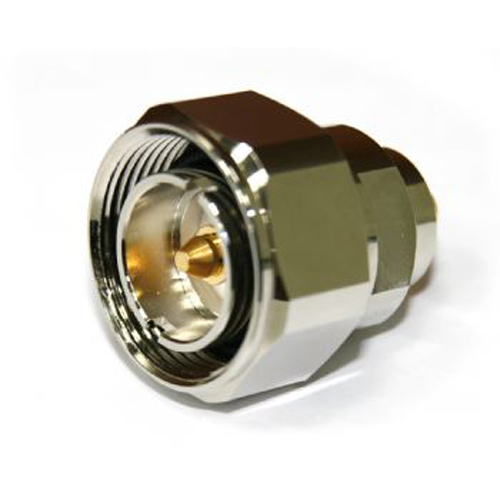

7/16 PLUG
- 产品型号:
- 7/16-1001
详细规格及用途描述
Impedance : 50 ohm
Frequency Range : DC~7.5 GHz
Working Voltage : 2500 VRMS MAX.
Dielectric Withstanding Voltage : 4000 VRMS MIN.
V.S.W.R. :
Straight 1.35 MAX.
Right Angle 1.85 MAX.
Contact Resistance :
Center Contact : 0.5 Milliohms MAX.
Outer Contact : 1.6 Milliohms MAX.
Insulator Resistance : 10,000 Megohms MIN.
