All Gain DIN / European Standard Hose Clamp
详细规格及用途描述

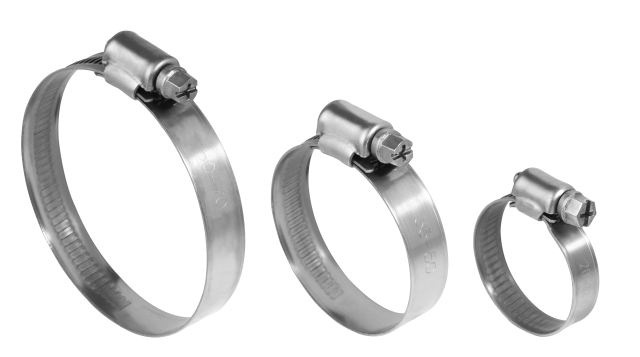

DIN Standard Hose Clamp
A DIN standard hose clamp is a type of non-perforated hose clamp carefully designed to prevent damage to soft hoses during installation. Its solid body without holes ensures that the fittings are not cut or squeezed while being installed or locked, thereby maintaining the integrity of the connection and providing a more stable sealing function.
The functionality and performance of DIN standard hose clamps are comparable to traditional American-style hose clamps. The DIN standard hose clamps produced by All Gain Industrial have gained popularity in both the Japanese and European markets. They can reliably maintain sealing and fastening even under demanding conditions.
All Gain Industrial handles the entire process in-house, from research and development, mold production, and manufacturing, to packaging, offering a comprehensive one-stop service. If you have any customization needs, please feel free to contact us.
ALL GAIN DIN Standard Hose Clamp | |||||||
| 9 mm BAND | |||||||
| Diameter Range | Packing / CTN | ||||||
| PART# | Band Width | Inches | Housing | Band | Band | pcs | kgs |
| Height | Thickness | Width | |||||
| 9G-12 | 8-12 | 5/16" - 1/2" | 9.5 | 0.6 | 11.5 | 2000 | 14.5 |
| 9G-16 | 8-16 | 5/16" - 5/8" | 9.5 | 0.6 | 11.5 | 2000 | 15.7 |
| 9G-20 | 12-20 | 1/2" - 3/4" | 9.5 | 0.6 | 11.5 | 2000 | 16.7 |
| 9G-22 | 12-22 | 1/2" - 7/8" | 9.5 | 0.6 | 11.5 | 2000 | 17.8 |
| 9G-25 | 16-25 | 5/8" - 1" | 9.5 | 0.6 | 11.5 | 2000 | 18 |
| 9G-27 | 16-27 | 5/8" - 1 1/16" | 9.5 | 0.6 | 11.5 | 2000 | 19.2 |
| 9G-32 | 20-32 | 3/4" - 1 1/4" | 9.5 | 0.6 | 11.5 | 2000 | 18.1 |
| 9G-40 | 25-40 | 1" - 1 5/8" | 9.5 | 0.6 | 11.5 | 2000 | 19.1 |
| 9G-45 | 30-45 | 1 3/16" - 1 3/4" | 9.5 | 0.6 | 11.5 | 1000 | 20.1 |
| 9G-50 | 35-50 | 1 1/4" - 2" | 9.5 | 0.6 | 11.5 | 1000 | 21.8 |
| 9G-60 | 40-60 | 1 5/8" - 2 3/8" | 9.5 | 0.6 | 11.5 | 1000 | 24.1 |
| 9G-70 | 50-70 | 2" - 2 3/4" | 9.5 | 0.6 | 11.5 | 1000 | 27.5 |
| 9G-80 | 60-80 | 2 3/8" - 3 1/8" | 9.5 | 0.6 | 11.5 | 500 | 16.5 |
| 9G-90 | 70-90 | 2 3/4" - 3 1/2" | 9.5 | 0.6 | 11.5 | 500 | 17.5 |
| 9G-100 | 80-100 | 3 1/8" - 4" | 9.5 | 0.6 | 11.5 | 500 | 18.1 |
| 9G-110 | 90-110 | 3 1/2" - 4 3/8" | 9.5 | 0.6 | 11.5 | 500 | 20.1 |
| 9G-120 | 100-120 | 4" - 4 3/4" | 9.5 | 0.6 | 11.5 | 500 | 20.5 |
| 9G-130 | 110-130 | 4 3/8" - 5 1/8" | 9.5 | 0.6 | 11.5 | 250 | 11.2 |
| 9G-140 | 120-140 | 4 3/4" - 5 1/2" | 9.5 | 0.6 | 11.5 | 250 | 12 |
| 9G-150 | 130-150 | 5 1/8" - 5 7/8" | 9.5 | 0.6 | 11.5 | 250 | 12.9 |
| 9G-160 | 140-160 | 5 1/2" - 6 1/4" | 9.5 | 0.6 | 11.5 | 250 | 12.5 |
| 13 mm BAND | |||||||
| Diameter Range | Packing / CTN | ||||||
| PART# | Band Width | Inches | Housing | Band | Band | pcs | kgs |
| Height | Thickness | Width | |||||
| 13G-27 | 16-27 | 5/8" - 1 1/16" | 12 | 0.8 | 15.5 | 1000 | 20.5 |
| 13G-32 | 20-32 | 3/4" - 1 1/4" | 12 | 0.8 | 15.5 | 1000 | 21 |
| 13G-40 | 25-40 | 1" - 1 5/8" | 12 | 0.8 | 15.5 | 1000 | 22.2 |
| 13G-45 | 30-45 | 1 3/16" - 1 3/4" | 12 | 0.8 | 15.5 | 1000 | 24.2 |
| 13G-50 | 35-50 | 1 1/4" - 2" | 12 | 0.8 | 15.5 | 1000 | 25.3 |
| 13G-60 | 40-60 | 1 5/8" - 2 3/8" | 12 | 0.8 | 15.5 | 1000 | 28 |
| 13G-70 | 50-70 | 2" - 2 3/4" | 12 | 0.8 | 15.5 | 500 | 32 |
| 13G-80 | 60-80 | 2 3/8" - 3 1/8" | 12 | 0.8 | 15.5 | 500 | 19.3 |
| 13G-90 | 70-90 | 2 3/4" - 3 1/2" | 12 | 0.8 | 15.5 | 500 | 20.3 |
| 13G-100 | 80-100 | 3 1/8" - 4" | 12 | 0.8 | 15.5 | 500 | 21 |
| 13G-110 | 90-110 | 3 1/2" - 4 3/8" | 12 | 0.8 | 15.5 | 500 | 23.5 |
| 13G-120 | 100-120 | 4" - 4 3/4" | 12 | 0.8 | 15.5 | 500 | 23.8 |
| 13G-130 | 110-130 | 4 3/8" - 5 1/8" | 12 | 0.8 | 15.5 | 250 | 13 |
| 13G-140 | 120-140 | 4 3/4" - 5 1/2" | 12 | 0.8 | 15.5 | 250 | 14 |
| 13G-150 | 130-150 | 5 1/8" - 5 7/8" | 12 | 0.8 | 15.5 | 250 | 15 |
| 13G-160 | 140-160 | 5 1/2" - 6 1/4" | 12 | 0.8 | 15.5 | 250 | 15.5 |
| 13G-170 | 150-170 | 5 7/8" - 6 5/8" | 12 | 0.8 | 15.5 | 250 | 16.7 |
| 13G-180 | 160-180 | 6 1/4" - 7" | 12 | 0.8 | 15.5 | 250 | 17.6 |
