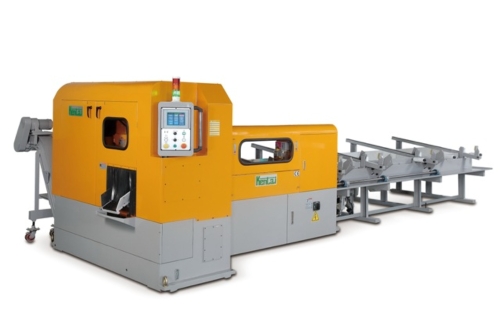

High Speed Circular Sawing Machine
- 产品型号:
- KTC-150SP
- 原产地:
- 台湾
详细规格及用途描述
Cut-off Capacity: KTC-150SP
Round Bar: 40 ~ 153 mm / 1.574 ~ 6.0 in
Square Bar: 40 ~ 110 mm / 1.574 ~ 4.33 in
Round Tube: 40 ~ 153 mm / 1.574 ~ 6.0 in
Square Tube: 40 ~ 110 mm / 1.574 ~ 4.33 in
Saw Head & Spindle:
TCT Carbide tipped sawblade:Ø460 x 2.7 t mm
HSS High-speed steel sawblade type:Ø450 / 5 t (max.)
Sawblade rotation speed:10 ~ 160 rpm / Variable speed
Chip removal: Steel brush disk / Dual type
Motor
Spindle driving motor: 15 kw (20Hp) / 4p
Hydraulic pump motor: 3.75 kw (5Hp) / 4p
Ac servo motor / GFC: 2.14 kw (Siemens) / 2 kw (Mitsubishi)
AC servo motor / Saw head: 4.87 kw (Siemens) / 5 kw (Mitsubishi)
Sawblade rotation speed: 10 ~ 160 rpm / Variable speed via frequency inverter
Coolant pump motor: 0.19 kw / 4p
Hydraulic Device
Work driving pressure: 100 kg/cm2 (10 MPa)
Tank Capacity: 100 liters / 26.46 gallons
Pneumatic Device
Work operating pressure: 4 ~ 6 kg/cm2 (55 ~ 85 psi)
Others
Dimension (L x W x H): 7290 x 2990 x 1908 mm / 23.88 x 9.80 x 6.26 ft
Main machine: 4,250 kgs / 9,350 lbs
Loading magazine: 1,350 kgs / 2,970 lbs
Main machine (Packing weight): 4,700 kgs / 10,340 lbs
Loading magazine (Packing weight): 1,800 kgs / 3,960 lbs
* The specifications subject to change without prior notice.
