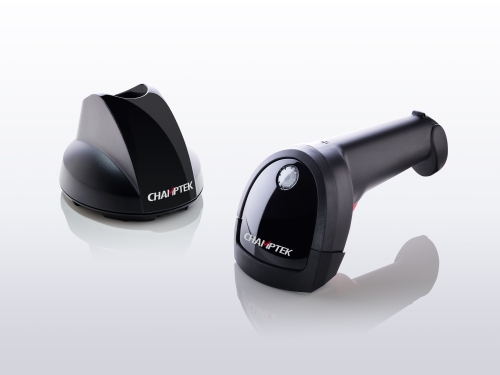

Gun-type Linear Imager Bar Code Scanner
- 产品型号:
- SG700
- 原产地:
- 台湾
详细规格及用途描述
Descriptions
SG700 is a brand new rugged gun-type linear imager bar code scanner which is designed especially for retail, logistic and warehousing management market. We include friendly functions with replaceable multiple interface cable options that makes it more easily to be operated by the customers to accommodate itself to user environment.
SG700 has most modern design with rugged casing and supports IP54 sealing protection, with its auto-shuttle-emulation-like smart detection, offers superior decoding performance on a reading speed up to 500 scans per second and up to 500mm reading depth for the majority of 1D bar codes and GS1 DataBar™ codes. A stand option can be ordered to facilitate hand-free reading options.
With its built-in automatically turn off reading and switch on reading, as it sense a bar code moving in front of it, can extend its lifespan.
In short, SG700 provides customer with the most cost-effective solution in the market. It is perfectly suitable and definitely the best choice for any retail and logistic environment.
Specifications
Performance
◎ Light Source Visible Red Light 632nm LED
◎ Processor type 32bits
◎ Depth of Field Up to 500 mm@20mil/0.5mm, PCS90%, Code39
◎ Scan Rate Smart detection, up to 500 scans per second
◎ Resolution 4mil/0.1mm@PCS90%, Code39
◎ Print contrast ratio 30%
◎ Indicator Beep and LED (Good read Green)
◎ Interface KBW/RS232/USB (HID or virtual comport)
Physical
◎ Color available Black (Cap and Grip) / Gray(Cap), Beige(Grip)
◎ Dimensions (WxHxL) 75 x 82.85 x 171.31 mm
◎ Weight 152.6g/5.38oz
Electronic
◎ Input Voltage DC +5V ± 5%
◎ Operating current 150mA
◎ Standby current 50mA
Environmental
◎ Ambient light Up to 100,000 Lux
◎ Operating temperature 0 °C to 50 °C (32 °F to 122 °F)
◎ Storage temperature -20°C to 70°C (-4°F to 158°F)
◎ Relative Humidity 20% to 95% (Non-condensing)
◎ Drop resistance 70.86 inches (180cm)
◎ Sealing protection IP54 sealing protection
◎ Symbologies Automatically discriminates major standard 1D bar codes, include GS1 databar
