Tissue machine--Paper Napkin Converting Machine

Folder Producing a Large Variety of Products
♦This is a folder which continuously converts tissue paper, thick paper, non-woven fabric or other materials from the parent roll into various shapes as shown below at the rate of 500 ~ 600 sheets/min per lane.
Fashionable and High Quality Table Napkin

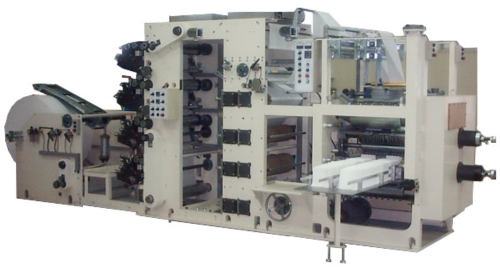

♦This machine is a rotary folder to which printing and embossing units are connected to produce beautiful lunch and dinner napkins through continuous processes of printing, embossing, folding and cutting of paper from the parent roll.
♦This machine is highly regarded in the converting industry for producing high quality table napkins.


No. of Lane: 2 Lane
Folding System: Vacuum
Unfold Size (L x W): 200mm x 200mm ~ 430 x 430mm (select one size or option more sizes)
Folded Size (L x W): As buyer requested
Folded Type: 1/4, 1/6, 1/8, Dispenser Folds
Capacity: 1,000 ~ 1,200 sheets/min
Embossing Unit: Can supply 1 ~ 4 sets of steel/paper roll
Flexor-printing Units: Can supply flexor-printing units up to 1 ~ 4 colors.
Converting Web: 1 ~ 3 ply napkin paper
Parent Roll Width: 400mm ~ 860mm
Parent Roll Diameter: Ø1,500 mm (Max.)
Option: Edge Guilder Control Device
