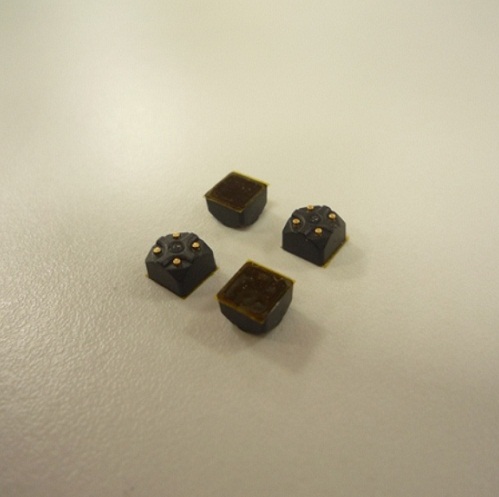

Tilt Rotation Sensor

●FUNCTIONS
1.Rotation Detecting
2.Two way 45° Tilt Detecting

●APPLICATIONS
1.Rotation detection for all kinds of monitors
2.Anti-theft / Anti-tamper devices
3.Alarm system
4.Automatically tilt shut off for sporting equipment
5.Toys、Entertainment devices

●FEATURES
1.Tiny size, suitable for small space.
2.No electricity consumption during detection status.
3.Housing made of high insulation plastic material, free from electric conduction and rust problem.
4.Gold-plated ball and terminals, low possibility of oxidization.
5.All plastic materials subject to industrial purpose, resist high temperature and meet fireproof function.
6.Suitable to vertical PCB.
7.Simple ON and OFF signals, easy for design.
8.RoHS compliance, an ideal substitute for mercury switch.
9.A more economical tilt and rotation detection option than IC design solution.
10.Switch state: Normal close

●PATENTS
1.Taiwan Patent No. 261280
2.U.S.A. Patent No. US 7,045,724 B1
