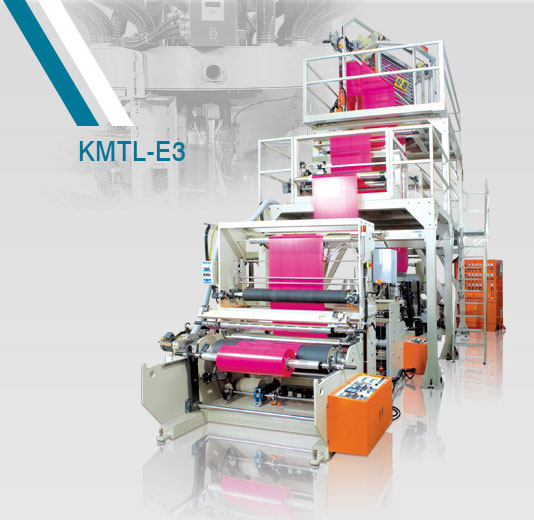

THREE LAYER BLOWN FILM EXTRUDER PLASTIC INFLATION MACHINE

MODEL	KMTL-40-45-40 E3	KMTL-45-55-45 E3	KMTL-55-65-55 E3
KMTL-40-45-40 E3	KMTL-45-55-45 E3	KMTL-55-65-55 E3
SUITABLE MATERIAL	HDPE/LDPE/LLDPE/mLDPE	HDPE/LDPE/LLDPE/mLDPE	HDPE/LDPE/LLDPE/mLDPE
HDPE/LDPE/LLDPE/mLDPE	HDPE/LDPE/LLDPE/mLDPE	HDPE/LDPE/LLDPE/mLDPE
FILM THICKNESS	0.02-0.15 mm	0.025-0.20 mm	0.03-0.20 mm
0.02-0.15 mm	0.025-0.20 mm	0.03-0.20 mm
FILM WIDTH RANGE	900 mm	1400 mm	1800 mm
900 mm	1400 mm	1800 mm
FILM OUTPUT	110 kgs/hr	150 kgs/hr	250 kgs/hr
110 kgs/hr	150 kgs/hr	250 kgs/hr
EXTRUDER UNIT
SCREW DIAMETER/TYPE	Ø 40/45/40 mm	Ø 45/55/45 mm	Ø 55/65/55 mm
Ø 40/45/40 mm	Ø 45/55/45 mm	Ø 55/65/55 mm
SCREW L/D RATIO	28:1	28:1	28:1
28:1	28:1	28:1
HEATING CAPACITY	24.6 kw	34.3 kw	43.7 kw
24.6 kw	34.3 kw	43.7 kw
AUTO THERMO CONTROL	11 zone	13 zone	17 zone
11 zone	13 zone	17 zone
BARREL COOLING FAN	1/8 HP x 6	1/8 HP x 9	1/8 HP x 9
1/8 HP x 6	1/8 HP x 9	1/8 HP x 9
DRIVING MOTOR	AC 15-20-15 HP + Inverter	AC 20-30-20 HP + Inverter	AC 30-50-30 HP + Inverter
AC 15-20-15 HP + Inverter	AC 20-30-20 HP + Inverter	AC 30-50-30 HP + Inverter
DIE UNIT
DIE DIAMETER	Ø200 mm	Ø300 mm	Ø500 mm
Ø200 mm	Ø300 mm	Ø500 mm
AIR RING DIAMETER	Ø250 mm	Ø350 mm	Ø550 mm
Ø250 mm	Ø350 mm	Ø550 mm
HEATING CAPACITY	19.8 kw	24.6 kw	28.8 kw
19.8 kw	24.6 kw	28.8 kw
AUTO THERMO CONTROL	3 zone	4 zone	4 zone
3 zone	4 zone	4 zone
COOLING BLOWER	5 HP	7 1/2 HP	10 HP
5 HP	7 1/2 HP	10 HP
TAKE-UP UNIT
TAKE-UP ROLLER	1100 mm	1600 mm	2000 mm
1100 mm	1600 mm	2000 mm
EFFECTIVE WIDTH	900 mm	1400 mm	1800 mm
900 mm	1400 mm	1800 mm
TAKE-UP MOTOR	AC 1/2 HP	AC 1 HP	AC 2 HP
AC 1/2 HP	AC 1 HP	AC 2 HP
TAKE-UP SPEED	65 m/min	45 m/min	40 m/min
65 m/min	45 m/min	40 m/min
WINDING UNIT
ROLLER WIDTH	1100 mm	1600 mm	2000 mm
1100 mm	1600 mm	2000 mm
WINDING WIDTH	900 mm	1400 mm	1800 mm
900 mm	1400 mm	1800 mm
WINDING MOTOR	DC 1 HP	DC 1 HP	DC 2 HP
DC 1 HP	DC 1 HP	DC 2 HP

* Remark: The above machine specification and production range can be changed without any notice due to kind of different application.
