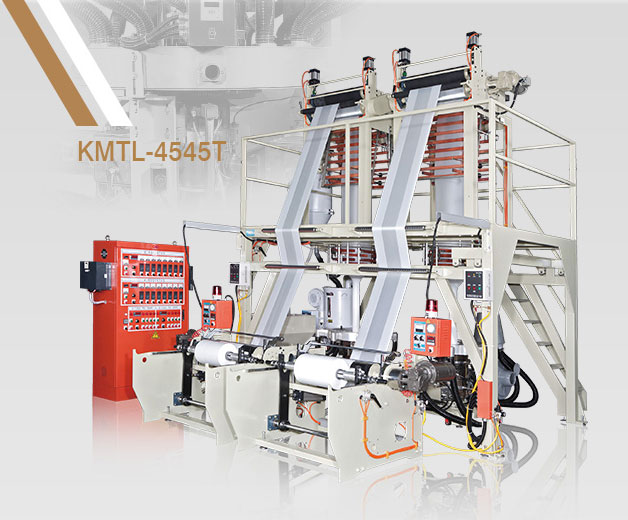

TWIN HEAD(A/B/A LAYER) HDPE / LDPE / LLDPE PLASTIC INFLATION MACHINE

TWIN HEAD(A/B/A LAYER) HDPE / LDPE / LLDPE PLASTIC INFLATION MACHINE

Model:
KMTL-4545T

Detail Specifications / Descriptions

MODEL KMTL-4545T
KMTL-4545T
SUITABLE MATERIAL HDPE/LDPE/LLDPE
HDPE/LDPE/LLDPE
FILM THICKNESS 0.010-0.10 mm
0.010-0.10 mm
FILM WIDTH RANGE 400 mm x 2
400 mm x 2
FILM OUTPUT 10-32 kgs/hr x 2
10-32 kgs/hr x 2
EXTRUDER UNIT
SCREW DIAMETER/TYPE Ø 45mm x 2
Ø 45mm x 2
SCREW L/D RATIO 28:1
28:1
HEATING CAPACITY 18.8 kw
18.8 kw
AUTO THERMO CONTROL 6 zone
6 zone
BARREL COOLING FAN 1/8 HP x 4
1/8 HP x 4
DRIVING MOTOR AC 20 HP + Inverter
AC 20 HP + Inverter
DIE UNIT
DIE DIAMETER ABA: Ø60/80 mm x 2
ABA: Ø60/80 mm x 2
AIR RING DIAMETER H: Ø120 mm x 2
H: Ø120 mm x 2
HEATING CAPACITY 30.8 kw
30.8 kw
AUTO THERMO CONTROL 10 zone
10 zone
COOLING BLOWER 3 HP x 2
3 HP x 2
TAKE-UP UNIT
TAKE-UP ROLLER 760 mm
760 mm
EFFECTIVE WIDTH 660 mm
660 mm
TAKE-UP MOTOR AC 1/2 HP
AC 1/2 HP
TAKE-UP SPEED 85 m/min
85 m/min
WINDING UNIT
ROLLER WIDTH 760 mm
760 mm
WINDING WIDTH 660 mm
660 mm
WINDING MOTOR DC 1/2 HP
DC 1/2 HP
* Remark: The above machine specification and production range can be changed without any notice due to kind of different application.

Company: KANG CHYAU INDUSTRY CO., LTD.
Address: No.2-10, Aly. 28, Ln. 227, Fuxing Rd., Luzhou Dist., New Taipei City 247, Taiwan (R.O.C.)
Telephone: 886-2-2285-6880, 2285-6881
Fax: 886-2-2285-6883
