![TWO COLOR HDPE HIGH SPEED INFLATION MACHINE TWO COLOR HDPE HIGH SPEED INFLATION MACHINE](https://www.cens.com/cens/supplier/3193/product/98566/BIG.jpg?xxx=1723618182507)

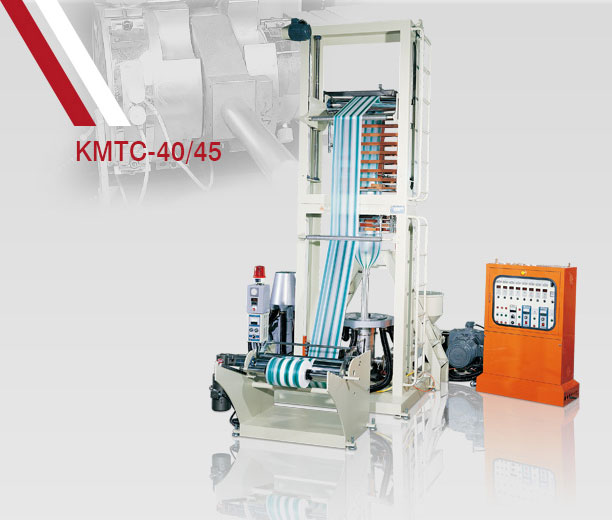

TWO COLOR HDPE HIGH SPEED INFLATION MACHINE
- Model:
- KMTC-40/45
Detail Specifications / Descriptions
MODEL | KMTC-40 | KMTC-45 |
---|---|---|
KMTC-40 | KMTC-45 | |
SUITABLE MATERIAL | HDPE | HDPE |
HDPE | HDPE | |
FILM THICKNESS | 0.008-0.15 mm | 0.008-0.15 mm |
0.008-0.15 mm | 0.008-0.15 mm | |
FILM WIDTH RANGE | 550 mm | 650 mm |
550 mm | 650 mm | |
FILM OUTPUT | 15-45 kgs/hr | 20-50 kgs/hr |
15-45 kgs/hr | 20-50 kgs/hr | |
EXTRUDER UNIT | ||
SCREW DIAMETER/TYPE | Ø 40mm x 2 | Ø 45mm x 2 |
Ø 40mm x 2 | Ø 45mm x 2 | |
SCREW L/D RATIO | 26:1 | 26:1 |
26:1 | 26:1 | |
HEATING CAPACITY | 13.2 kw | 17.2 kw |
13.2 kw | 17.2 kw | |
AUTO THERMO CONTROL | 6 zone | 6 zone |
6 zone | 6 zone | |
BARREL COOLING FAN | 1/8 HP x 2 | 1/8 HP x 4 |
1/8 HP x 2 | 1/8 HP x 4 | |
DRIVING MOTOR | AC 15 HP x 2 + Inverter | AC 20 HP x 2 + Inverter |
AC 15 HP x 2 + Inverter | AC 20 HP x 2 + Inverter | |
DIE UNIT | ||
DIE DIAMETER | Ø70 mm x 24 lines | Ø70 mm x 24 lines |
Ø70 mm x 24 lines | Ø70 mm x 24 lines | |
AIR RING DIAMETER | Ø120 mm | Ø120 mm |
Ø120 mm | Ø120 mm | |
HEATING CAPACITY | 7.9 kw | 7.9 kw |
7.9 kw | 7.9 kw | |
AUTO THERMO CONTROL | 2 zone | 2 zone |
2 zone | 2 zone | |
COOLING BLOWER | 3 HP | 5 HP |
3 HP | 5 HP | |
TAKE-UP UNIT | ||
TAKE-UP ROLLER | 660 mm | 760 mm |
660 mm | 760 mm | |
EFFECTIVE WIDTH | 550 mm | 650 mm |
550 mm | 650 mm | |
TAKE-UP MOTOR | AC 1/2 HP | AC 1/2 HP |
AC 1/2 HP | AC 1/2 HP | |
TAKE-UP SPEED | 85 m/min | 85 m/min |
85 m/min | 85 m/min | |
ELEVATING MOTOR | AC 1/2 HP | AC 1/2 HP |
AC 1/2 HP | AC 1/2 HP | |
WINDING UNIT | ||
ROLLER WIDTH | 660 mm | 760 mm |
660 mm | 760 mm | |
WINDING WIDTH | 550 mm | 650 mm |
550 mm | 650 mm | |
WINDING MOTOR | DC 1/2 HP | DC 1/2 HP |
DC 1/2 HP | DC 1/2 HP |
