STRETCH FILM LDPE/LLDPE PLASTIC INFALATION MACHINE

STRETCH FILM LDPE/LLDPE PLASTIC INFALATION MACHINE

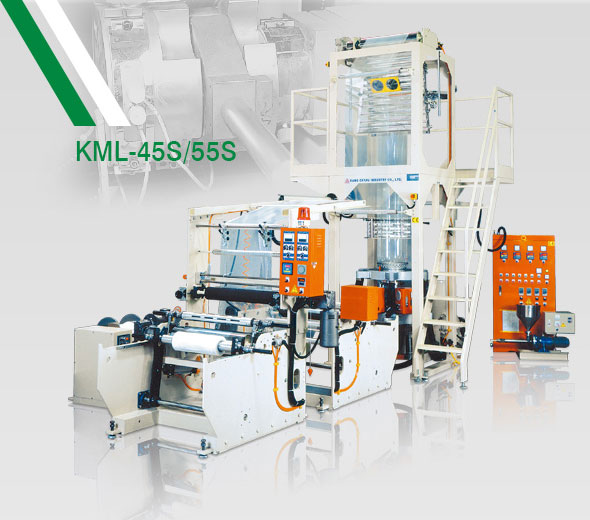

Model:
KML-45S/55S

Detail Specifications / Descriptions

MODEL KML-45S KML-55S
KML-45S KML-55S
SUITABLE MATERIAL LDPE/LLDPE LDPE/LLDPE
LDPE/LLDPE LDPE/LLDPE
FILM THICKNESS 0.008-0.10 mm 0.008-0.10 mm
0.008-0.10 mm 0.008-0.10 mm
FILM WIDTH RANGE 600 mm 900 mm
600 mm 900 mm
FILM OUTPUT 20-55 kgs/hr 30-72 kgs/hr
20-55 kgs/hr 30-72 kgs/hr
EXTRUDER UNIT
SCREW DIAMETER/TYPE 45 55
45 55
SCREW L/D RATIO 30:1 30:1
30:1 30:1
HEATING CAPACITY 9.8 kw 14 kw
9.8 kw 14 kw
AUTO THERMO CONTROL 4 zone 4 zone
4 zone 4 zone
BARREL COOLING FAN 1/8 HP x 2 1/8 HP x 3
1/8 HP x 2 1/8 HP x 3
DRIVING MOTOR AC 20 HP + Inverter AC 30 HP + Inverter
AC 20 HP + Inverter AC 30 HP + Inverter
DIE UNIT
DIE DIAMETER Ø175 mm Ø250 mm
Ø175 mm Ø250 mm
AIR RING DIAMETER Ø225 mm Ø300 mm
Ø225 mm Ø300 mm
HEATING CAPACITY 6.5 kw 9 kw
6.5 kw 9 kw
AUTO THERMO CONTROL 2 zone 3 zone
2 zone 3 zone
COOLING BLOWER 3 HP + Inverter 5 HP + Inverter
3 HP + Inverter 5 HP + Inverter
TAKE-UP UNIT
TAKE-UP ROLLER 760 mm 1100 mm
760 mm 1100 mm
EFFECTIVE WIDTH 660 mm 900 mm
660 mm 900 mm
TAKE-UP MOTOR AC 1/2 HP AC 1/2 HP
AC 1/2 HP AC 1/2 HP
TAKE-UP SPEED 75 m/min 65 m/min
75 m/min 65 m/min
ELEVATING MOTOR Roller Type
Roller Type
WINDING UNIT
ROLLER WIDTH 760 mm 1100 mm
760 mm 1100 mm
WINDING WIDTH 660 mm 900 mm
660 mm 900 mm
WINDING MOTOR DC 1/2 HP x 3 DC 1/2 HP x 3
DC 1/2 HP x 3 DC 1/2 HP x 3
EQUIPMENT Auto tnesion controller Waste collecting winder Adhesives auto - feeder Auto tnesion controller Waste collecting winder Adhesives auto - feeder
Auto tnesion controller Waste collecting winder Adhesives auto - feeder Auto tnesion controller Waste collecting winder Adhesives auto - feeder
* Remark: The above machine specification and production range can be changed without any notice due to kind of different application.
