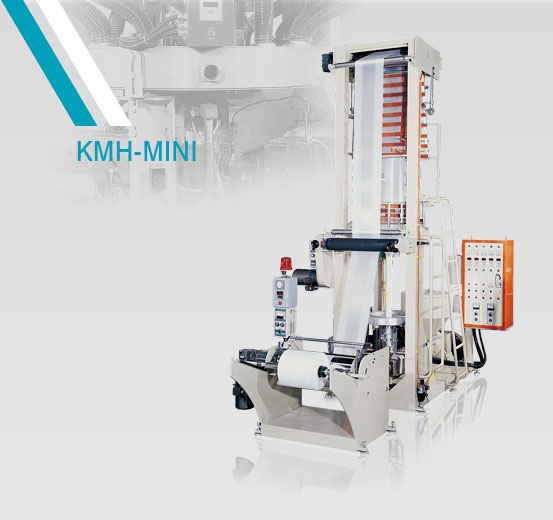

HDPE HIGH SPEED PLASTIC INFLATION MACHINE
- Model:
- KMH-MINI
Detail Specifications / Descriptions
| MODEL | KMH-MINI |
|---|---|
| KMH-MINI | |
| SUITABLE MATERIAL | HDPE |
| HDPE | |
| FILM THICKNESS | 0.008-0.10 mm |
| 0.008-0.10 mm | |
| FILM WIDTH RANGE | 550 mm |
| 550 mm | |
| FILM OUTPUT | 15-32 kgs/hr |
| 15-32 kgs/hr | |
| EXTRUDER UNIT | |
| SCREW DIAMETER/TYPE | Ø 40mm |
| Ø 40mm | |
| SCREW L/D RATIO | 26:1 |
| 26:1 | |
| HEATING CAPACITY | 6.6 kw |
| 6.6 kw | |
| AUTO THERMO CONTROL | 3 zone |
| 3 zone | |
| BARREL COOLING FAN | 1/8 HP×1 |
| 1/8 HP×1 | |
| DRIVING MOTOR | AC 15 HP + Inverter |
| AC 15 HP + Inverter | |
| DIE UNIT | |
| DIE DIAMETER | Ø60/80 mm |
| Ø60/80 mm | |
| AIR RING DIAMETER | Ø120 mm |
| Ø120 mm | |
| HEATING CAPACITY | 6.6 kw |
| 6.6 kw | |
| AUTO THERMO CONTROL | 2 zone |
| 2 zone | |
| COOLING BLOWER | 3 HP |
| 3 HP | |
| TAKE-UP UNIT | |
| TAKE-UP ROLLER | 660 mm |
| 660 mm | |
| EFFECTIVE WIDTH | 550 mm |
| 550 mm | |
| TAKE-UP MOTOR | AC 1/2 HP |
| AC 1/2 HP | |
| TAKE-UP SPEED | 85 m/min |
| 85 m/min | |
| ELEVATING MOTOR | |
| WINDING UNIT | |
| ROLLER WIDTH | 660 mm |
| 660 mm | |
| WINDING WIDTH | 550 mm |
| 550 mm | |
| WINDING MOTOR | DC 1/2 HP |
| DC 1/2 HP | |
| MACHINE DIMENSION | 370×270×340 cm |
| 370×270×340 cm | |
