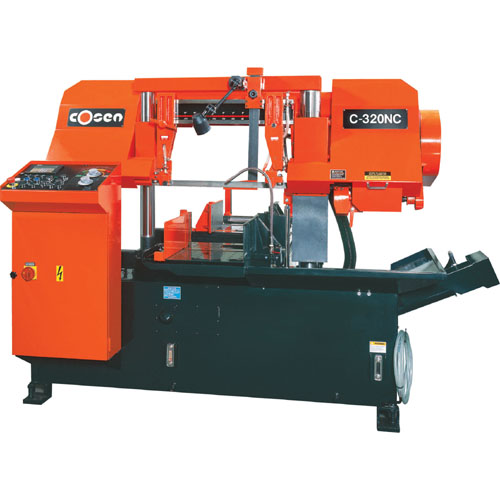

SNC Automatic Saw with Shuttle Vise

Structure
* Oversized precision ground, large dual columns
* Cross link connecting two columns for enhanced structural strength
* Back-tilted saw frame for longer blade life
* Hydraulic shuttle vise assembly
Blade Drive
* Specially designed gearbox for high lateral pressure
* Inverter controlled infinitely variable blade speed
Blade Guidance & Lubrication System
* Carbide blade guides with bearing guides
* Two additional guides to support the blade from the top
* Automatic hydraulic blade tensioning device
* Integral coolant system
* Pitch design for coolant drainage
* Synchronized power driven blade brush
Control & Automation
* Smart NC-20 (SNC-20) technology programmable up to 20 different jobs
* Automatic kerf compensation & automatic multiple indexing
* "Save-a-Blade" design to prevent tooth deformities
* Automatic shutdown
* Error code display for simplified self-diagnostics
* LCD screen with film type key pad, blade speed/life, feed vise position display
* Precision feed pressure & feed rate dual valve system
* Bundle/single cutting mode switch
* Automatic work height selector & air gap eliminator
Material Feeding & Clamping
* Split vise jaws featuring automatic feeding down to remnant length of 50mm (2")
* Hydraulic front and rear vises
* Ductile cast iron vises with replaceable hardened wear plates
* Computer controlled multiple indexing up
* One set of vertical alignment rollers
Safety
* Proximity switch for sensing blade slippage or breakage
* Interlock design in electrical and hydraulic system
* Conduits protection measure
* "Alert Orange" safety measure
Standard Accessories
* Blade "clip" device for easy blade change
* Adjustable front plate for cut-off stock
* Additional flushing hose
* Bi-metal saw blade
* Built in work light
* Tool box, leveling pads, and an additional wire brush
* Operation & parts manual
Design & Specification are subject to change without notice and obligation.
