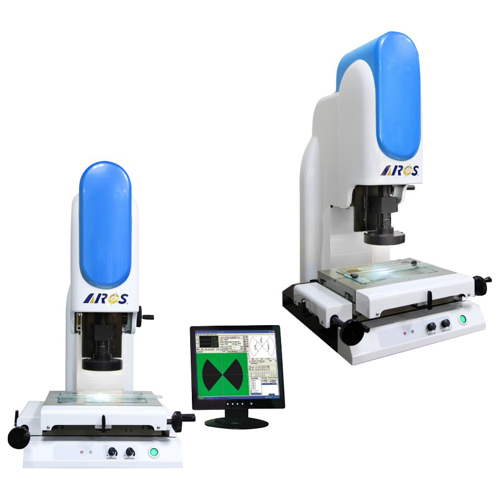

Non-Contact Video Measuring System
- Model:
- KIM-N
- Country of Origin:
- Taiwan
- Color:
- Blue & White
Detail Specifications / Descriptions
Technology Features of KIM-2010N Series
* Video system: High Resolution & High Accuracy CCD
* Magnification: 0.7x~4.5x (17.5x~112.5x) Auto zoom lens
* Illumination: LED adjustable surface and contour illumination (High Brightness Ring Illumination)
* Linear scale: 0.0005mm on X, Y, Z-axis
* Length accuracy: ± (3+L/150) μm on X,Y-axis
* Repeatability: 0.003mm on X, Y-axis
* Connection:
USB Output + Metrology software
* Sighting device: Cross-hair generator
* Base: Precision granite table
* Power supply :AC110/220V, 50/60Hz
* Software: SI-101
