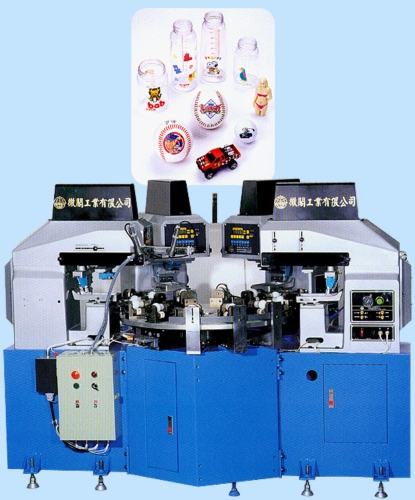

Four Color Pad Printing Combination

* Applications:
o Suitable for telephone and mobile phone's key pad, household electric appliance and sporting goods.
* Color : 4
* Max Printing Plate : 100 x 100 (mm)
* Output / Hour : 600 ~ 1,800
* Dimension (L x W x H) : 1,500 x 2,500 x 1,550 (mm)
* Net WT : 500 kg

Features:

* With microprocessor controlled and auto "DEFAULT" system, easy to operate and maintenance.
* An advanced and unique four times "PAUSE" function for better printing quality has been designed to enable users who may stop or continue the operation, as wish, any time in process of printing.
* A durable and trouble free both Germany made "BOSCH" and Japan made "SMC" quality pneumatic components and bearing have been adopted and used on the machine.
* A detachable ink tray and adjustable Dr. blade are used on the machine of which these two separate unit can be adjusted respectively as per different applications, as wish, if required.
* A "Temperature Control" hot air equipment is mounted on the machine for quick ink drying and perfect registration when in process of printing.
* A durable Japan made non-oil type bearings and axis are used on the machine.
* The Mitsubishi PLC control is adopted and used as a peripheral control system to the machine of which the program can be changed to meet with users' requirements.
* An optional large type ratary index table is available for one side single color printing to multiple sides multiple colors printing (On request).
* The Combination Unit of which the model and number of machine is subject to customer's design and color required.
* Custom-made machine is available and welcome.
