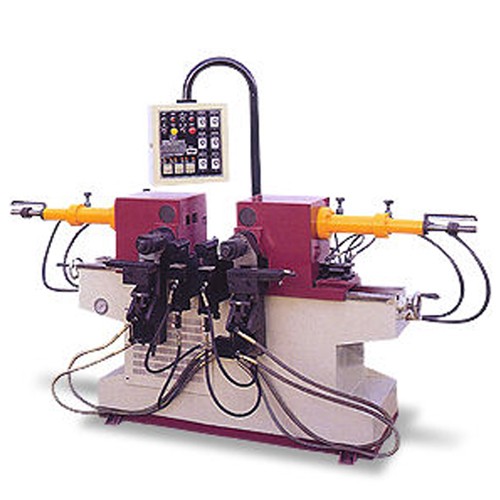

DOUBLE-BENDING METAL TUBE BENDER

FEATURES:
*Adopting solenoid valve and integrated circuit to control individual motion separately. *Extending the life of the hydraulic system parts.
*Three step hydraulic oil flow system combines the functions of cooling. *Sedimentation and preventing deterioration.
*Large type bending machine is equipped with manual hydraulic adjusting valve to control the speed of bending motion. (This feature can be added to small machine per request).
*Bending motion is controlled by low speed positioning device to increase the accuracy of desired bending angles.
*Various angles can be selected to create multiple bending sequence. *Eliminating the material loading/UN-loading time, the usage of a separate machine, and accumulating additional labor cost.
*Both manual and automatic operation are available and all machines are equipped with emergency stop device.
*The main shaft is specially heat treated. All parts are tested and assembled with strict quality control to meet the specification of ISO 9002 and CE standard.
*Based on the tube diameter, wall thickness and bending radius, machine operator may select to bend parts with or without a mandrel.
*The removable axle and easy tool changing design allows no limitation on the minimal bending radius.
*The range of maximum and minimum bending angle can be increased or decreased based on customer's requirement.
*We can supply wide range of bending machines capable of bending pipes up to 203MM (8" Diameter).
*Simple to read and user friendly functions allow NON-Technician and new operator to joint production force rapidly.
