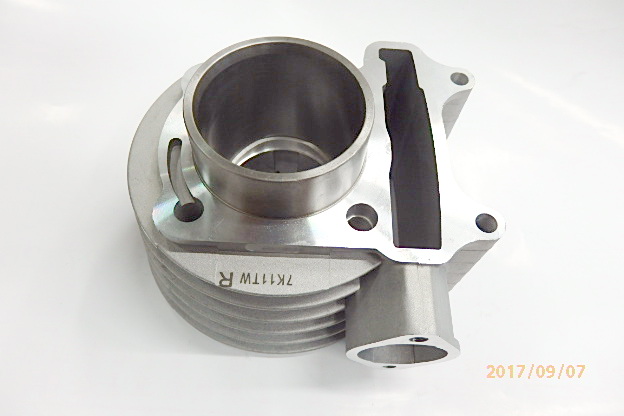

JR 100, cylinder

JR 100 cylinder = KiWi 100 cylinder = easy 100 cylinder = So Easy 100 cylinder = CHERRY 100 cylinder =kiwi100 cylinder =KHC4 cylinder
( JR-100 ビッグボアシリンダー )
Include cylinder body,Piston,Piston ring, Pin, gasket and G ring.
Original Size: 50 x 51.8(101.8cc )
KYMCO JR Big bore cylinder
JR-01055 : JR 55mm cylinder (123cc)
JR-01056 : JR 56mm cylinder (127.6cc)
Taida’s JR 56mm cylinder don’t cut the engine block.
From 58.5 mm start to cut case
JR-01058.5 : JR Big bore 58.5mm cylinder (139.2 cc )
JR-01061 : JR Big bore 61 mm cylinder (151.4 cc )
JR-01063 : JR Big bore 63 mm cylinder (161.5 cc )

JR high Torque Starter motor
--------------------------------------------------------------------------------------------------------------------------------------------------------------------
Especificación detallada

JR 100 cilindro = KiWi 100 cilindro = easy 100 cilindro = So Easy 100 cilindro = CHERRY 100 cilindro
incluye el cilindro, pistón, anillo de pistón, Pin, juntas y anillos de forma G
Tamaño original: 50 x 51.8( 101.8 cc )
KYMCO JR Big bore cilindro
JR-01055 : JR 55 mm cilindro (123 cc)
JR-01056 : JR 56 mm cilindro (127.6 cc)
JR 56mm cilindro de Taida no necesita cortar el bloque del motor
Desde 58.5 mm necesta cortar el bloque
JR-01058.5 : JR Big bore 58.5mm cilindro (139.2cc )
JR-01061 : JR Big bore 61mm cilindro (151.4cc )
JR-01063 : JR Big bore 63mm cilindro (161.5cc )

JR100 motor de arranque por torsión alta
