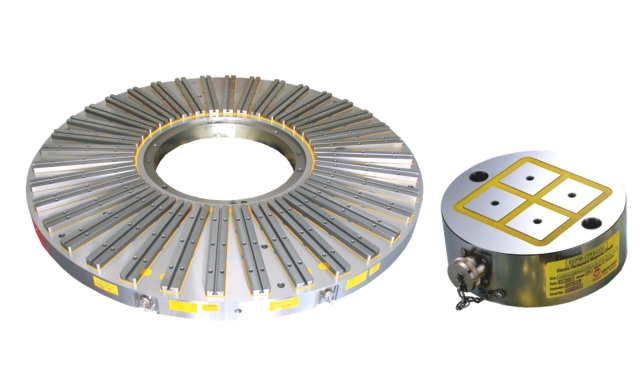

Electro-Permanent Magnetic Chuck
- Model:
- EEPM-CIR
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
Suitable in use for combine with CNC 5 Axis Index Device, CNC 5 Axis Machining Center, Vertical & Horizontal Lathe ...etc.
1. Round type and radiate magnetic poles, suitable for clamping round type and any form of work piece machining.
2. Work pieces can be touch to all poles of Magnetic Chuck, super power magnetic force as minimum of 1000Kgf and maximum of 20,000Kgf; it depends on size of work piece and magnetic chuck.
3. 3~10 seconds control for power ON & OFF. No electric power supply required to keep the magnetic chuck ON, cable can be taken off for turning chuck freely while machining.
4. Un-obstructed movement of cutters during machining, the really functions of 5 side machining on work holding.
