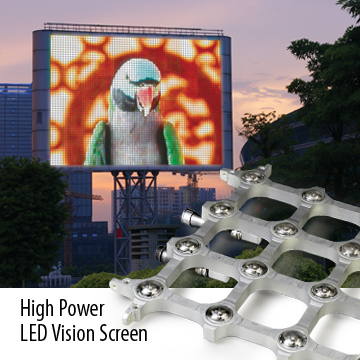

LED High Power Vision Screen
- Model:
- LSP-O-100-T-RO-02
- Country of Origin:
- China
Detail Specifications / Descriptions
It is a kind of advanced indoor or outdoor screen which produces physical pixel, static scanning, quick installation, easy maintenance. It is very popular among LED Screen users for its perfect picture quality and gorgeous color and can be seen at a long distance.
Specifications:
* Module Dimension: 400mmx400mmx30mm
* Pitch: 100mm
* Pixel consititution: 3W Full Color SMD LED
* Unit Resolution (LxW): 4x4
* Pixel Density (pixel/m2): 100
* Brightness (cd/m2): 5000
* IP Rating: IP65
* Optimal Viewing Distance (m): 100~300
* Peak Power Consumption (≤) 50W
* Average Power Consumption (≤): 20W
* Module Weight (kg): 1.7
* Scanning Mode: Static Scanning
* Viewing Angle: Horizontal 130°, Vertical 130°
* Drive Voltage (DC): 4.5~5.5V
* Gradations: 512 Gradations for Red, Green, Blue
* Frame Rate: 120 (f/s)
* Control Mode: Real time PC monitoring
* Screen Lifespan: ≥100,000hours
* Blind Pixel Rate: ≤0.0001
* Operating Voltage: AC100-240V 47~64Hz
* Effective Control Distance (m): <130
* Working Temperature: -10°C~50°C
* Working Humidity: 10%-90%RH
