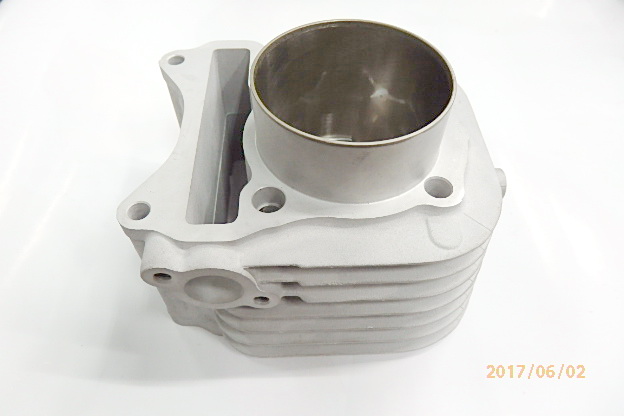

Address 125, cylinder

Address 125, cylinder

Model:
ADD-010
Country of Origin:
Taiwan
Material:
steel alloy

Detail Specifications / Descriptions

Address cylinder =GSR 125 cylinder = V125G cylinder ( 7.65 HP ) = NEX125 cylinder ( 7.61 HP )
The forging piston waste time to produce and need high skill to make, but it can use for a long time and more hard than usually one.
Taida ceramic cylinder is durable than founding cylinder.
Its liner is not steel material but applied a coat made form ceramics by electroplate technology.
Include cylinder body,Piston,Piston ring, Pin, gasket and G ring.
( Address ビッグボアシリンダー )
Original Size : 53.5 x 55.2 ( 124 cc )
SUSUKI Address V125 Big bore cylinder
ADD-01061 Address 61 mm cylinder (161 cc )
Taida’s V125 61 mm cylinder don’t cut the engine block.
ADD-01061-cf Address Big bore 61 mm ceramic forging cylinder (161 cc) 14 pin
ADD-01063.5 Address Big bore 63.5 mm iron cylinder 14 pin
Taida’s V125 63.5 mm cylinder must cut the engine block
ADD-01063.5-cf Address Big bore 63.5 mm ceramic forging cylinder 14 pin
ADD-01066-cf Address Big bore 66 mm ceramic forging cylinder 15 pin
----------------------------------------------------------------------------------------------------
Especificación detallada

Address=GSR125= V125G ( 7.65 HP ) = NEX125 ( 7.61 HP )
La producción del pistón forjado es más larga y necesita más tecnología, así que el forjado es más duradero y más duro.
El cilindro cerámico de Taida es más duradero que el fundido.
En el interior, el material no es de acero, pero se usa la cerámica para cubrir a través de la tecnología de electrochapeado.
Incluye el cilindro, pistón, anillo de pistón, Pin, juntas y anillos de forma G
Tamaño original : 53.5 x 55.2 ( 124 cc )
SUSUKI Address V125 Big bore cilindro
ADD-01061 Address 61 mm cilindro ( 161cc )
V125 61 mm cilindro de Taida no necesita cortar el bloque del motor.
ADD-01061-cf Address Big bore 61 mm cilindro cerámico+forjado ( 161cc ) 14 clavija
ADD-01063.5 Address Big bore 63.5 mm cilindro de hierro 14 clavija
V125 63.5 mm cilindro de Taida necesita cortar el bloque del motor.
ADD-01063.5-cf Address Big bore 63.5 mm cilindro cerámico+forjado 14 clavija
ADD-01066-cf Address Big bore 66 mm cilindro cerámico+forjado 15 clavija
