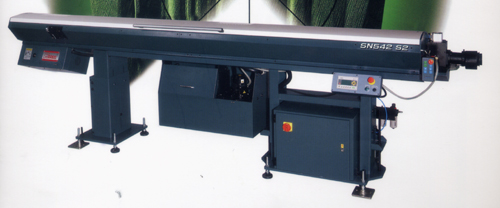

Hydrodynamic Automatic Bar Feeder

MODEL 542 S2-25 542 S2-32 542 S2-37 542 S2-44
Bar diameter Ø5mm-ø45mm Ø5mm-ø45mm Ø5mm-ø45mm Ø5mm-ø45mm
Bar length 25/2500mm 32/3200mm 37/3700mm 44/4400mm
Magazine capacity Ø10x28pcs Ø10x28pcs Ø10x28pcs Ø10x28pcs
Spindle height 850mm-1300mm 850-1300mm 850mm-1300mm 850mm-1300mm
Weight 800kgs 900kgs 1000kgs 1100kgs
Power supply 220/380V 10A 3p 50/60Hz 220/380V 10A 3p 50/60Hz 220/380V 10A 3p 50/60Hz 220/380V 10A 3p 50/60Hz
Air supply 6kg/cm² 6kg/cm² 6kg/cm² 6kg/cm²


Channel Bar Diameter Working Mode
Min Max
17 5 16


Finger chuck with remnant extraction or “push type” without remnant extraction
21 5 20
23 5 20
28 5 27
33 5 32
36 5 35
38 10 37
43 10 42
46 10 45
