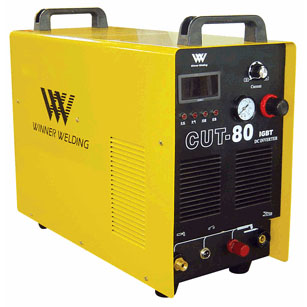

IGBT Inverter ARC Plasma Cutting Machine
- Model:
- CUT-80
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
Function and feature
* High frequency inverter, high duty cycle, low energy consumption.
* Compact, light weight and easy to carry, suitable for outdoor movable operation.
* High cutting speed, norrow cutting gap, smooth cutting surface, less distortion.
* Digital electric current disply adjustable and exact cutting current.
* Protective electric circuit built-in to prevent over heat, over current, over voltage or under voltage etc.
Features:
* Stabilizing
* Reliability
* Lightness
* Save-energy and no noise
* High cutting speed
* Cutting smoothly and no polish demands
Main technical parameters:
* Input Voltage/Frequency: 380V±10% 3Ph 50/60HZ
* Rate input power capacity (KVA): 6.6
* Output current range (A): 20~80
* Rate output voltage (V): 100
* O.C.V (V): 280
* Duty cycle (%): 60
* Efficency (%) 85
* Weight (kg): 26
* Overall dimension (mm): 540x245x440
* Exhaust (m/min): 6
* Pilot arc: yes
* Max.cutting thickness (mm): 28.0
