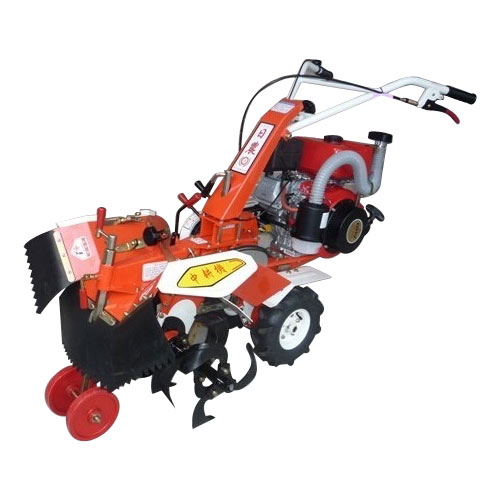

Cultivator (Nichino)
Hot- Model:
- 850 S-Type
- Country of Origin:
- Taiwan
- Material:
- steel tube & steel sheet
- Color:
- Tangerine Red & white
Detail Specifications / Descriptions
Suitable for banking, furrowing, and U & V shaped tillage
Japanese Mitsubishi 4-cycle gasoline engine, oil-type air filter; 8HP (GM291) & 10HP (GM301) engines optional
Transmission type: Direct shifting-gear drive for 2 speed forward/reverse movement
Belt/tension wheel drive
Speed: Forward: 3.50km/hr (max.); 1.84km/hr (min.); backward: 4.86km/hr (max.); 2.58km/hr (min.)
Cultivating section: Cutter rotation speed (including secondary transmission): 1:583/2:315/3:496.9/4:268.8 (rpm)
Track distance adjustment: 18cm (the narrowest) to 36cm (the widest)
Tire spec: 350-5 w/herringbone tire tread
Depth of cultivation: 3-25cm
Width of cultivation: 65cm
Depth of tillage: 3-30cm
Width of tillage: 18, 24, 30, 36, 45 (cm)
Machine spec: L145 x W65 x H85 (cm)
Handle adjustment: 5-step height adjustment
Net weight: 110kg (including 6 rotary cultivating cutters,excluding the engine)
