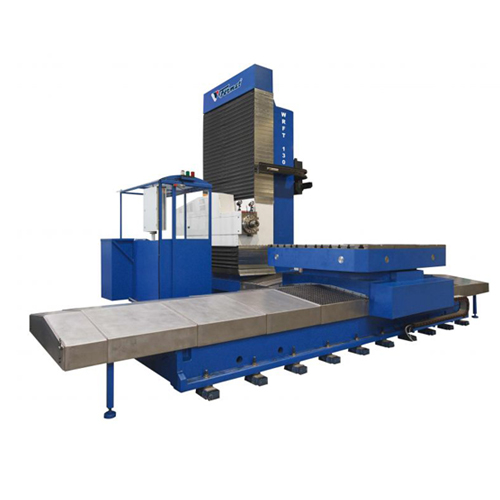

Table-type Horizontal Boring Machine WRFT 130 CNC

The WFT 130 CNC and WRFT 130 CNC represent a specifi c Table Type of horizontal boring mill. The former is a version with a Movable Life Spindle; whereas the latter possesses a Movable Ram. Because of this modern design, the Horizontal Boring Mill WRFT 130 is a Universal Boring and Milling Machine that allows effi cient processing of large and heavy workpieces, while ensuring high precision and high quality of operation.

Its main feature is a modular concept that allows great operational variability in confi gurations, according to the client’s requirements. Modern control systems (usually Heidenhain) provide very comfortable manipulation of the machine and many useful functions for the user. Horizontal Boring Mill WRFT 130 offers 6 axes travel (X, Y, Z, V, W and B) while WFT 130 adopts the movement on 5 axes. Given additional optional accessories, it is possible to increase number of controlled axes. During the metal processing, the column of the machine adopts Z-axis movement and the workpieces are clamped on a rotary table that travels in the X-axis.




Spindle Diameter
Ф130
mm


Spindle Taper
DIN 69871
ISO 50


Spindle RPM
10 －3 000
rpm


Maximum Spindle Torque (S1 Continuous)
2 000
Nm


Headstock dimension
400 x 400
mm


Spindle Motor Power (S1 Continuous)
37
kW


Table travel (X-axis)
2400 - 6100
mm


Headstock travel (Y-axis)
2 000, 2 500, 3 000, 3 500, 4 000
mm


Column travel (Z-axis)
2100 - 3900
mm


Spindle Travel (W-axis)
730
mm


Ram travel (V-axis)
900
mm


Operation traverse all axis
1 – 8000
mm/min


Rapid traverse X-axis, Y-axis, Z-axis
1 - 15 000
mm/min


Rapid traverse V-axis, W-axis
1 - 10 000
mm/min


Rapid traverse B-axis
1.8
rpm


Max. traverse force X-axis, Y-axis, Z-axis
25
kN


Max. traverse force V-axis, W-axis
30
kN


Positioning Accuracy X, Y, Z, W
±0.01
mm


Repeatable Positioning Accuracy X, Y, Z, W
±0.005
mm


Table Dimension
2000 x 2500, 2000 x 3000, 2500 x 3000
mm


T-slots - size

- distance
- number

28 H8
160
mm
mm
13


Max. table load
25 000
kg
