AH-301 Automatic Copy Shaper

* Wood Machines

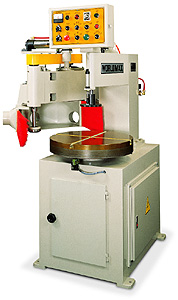

* This light duty automatic copy shaper is capable of cutting work piece diameter from Ø3" to Ø 30", maximum square of cut is 21", the single cutter head is driven by a 10 HP motor, the Ø 23" diameter of table is driven by a DC motor, permitting for variable speed adjustment, and making it ideal for cutting complicated profiles. the machine is standard built with a center clamp for single station work like chair seat, and desk...etc. multiple air clamps is available for multi-station work such as chair arm, and cabinet parts...etc.




AH-301
AH-60
AH-52C-2


WORKPIECE DIAMETER
3”～30”
6”～60”
10”～52”


MAXIMUM SQUARE
21”
42”
36”


MAXIMUM RECTANGLE
2:1
3.5:1
2:1


TABLE DIAMETER
23”
40”
42”


R.P.M. OF TABLE INFINITELY
0-3/min
0-3/min
0-3/min


H.P. OF TABLE MOTOR
DC 1HP
DC 2HP
DC 2HP


R.P.M. OF CUTTER HEAD
9000 RPM
9000 RPM
9000 RPM


CUTTER HEAD MOTOR POWER
10HP
10HP
10HP x 2
