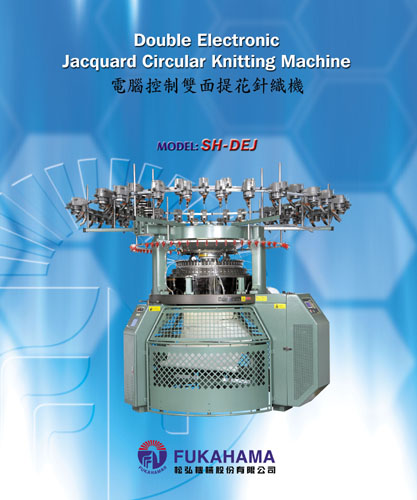

Double Electronic Jacquard Circular Knitting Machine

Dial: 30"-40" Feeder: 2 Feeders per inch Gauge: 16G-18G,20G-22G, 24G-28G
WAC Electronic needle selection system: Each feed is fitted with a "3 position 16 step piezoelectric actuator". The current and voltage act on the piezo-ceramic, which makes the actuator finger upward or downward to drive the selection jack for needle selection. In long-running, with low power consumption and moderate heat, the piezoelectric actuator ensures the precision of needle selection. The forced regression design of cam ensures the needle selecting cycle more accurate and without elastic fatigue, also keeps the machine in a certain speed and output. WAC Electronic Controller: Control the system with a touch screen interface. The function including: Data input, machine test, reset, color change, and so on. (2,3,4 colors double Jacquard, relief jacquard, welt). All patterns and datum can be read from the screen and transfer to machine command.
Fabric Features: SH-DEJ provides various fabric stitch possibilities: include all double structures, relief pattern, big size pattern, 2, 3 and 4 colors double jacquard, tuck stitch, and 8-lock based structure.
