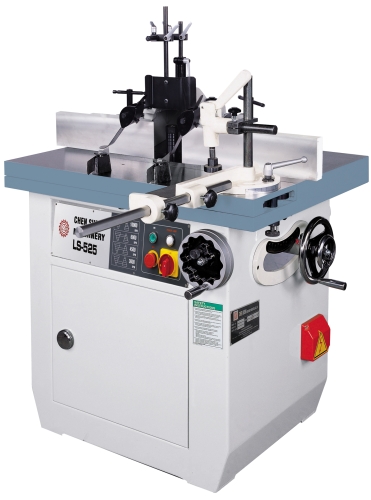

Tilting Spindle Shaper With Sliding Table
- Model:
- LS-525TS
Detail Specifications / Descriptions
＊Spindle Dia. : 3/4", 1", 1-1/4" , 30mm (Choice Of One Spindle Size)
＊Spindle Speed：3000/4500/7500/10000 R.P.M..
＊Taper Of Spindle：Mk5
＊Spindle Motor：5 Hp/3ph(7.5hp Opt.)
＊Spindle Travel：130mm(5")
＊Spindle Capacity Under Nut：3-1/4", 3-3/4", 4-1/2"(3/4", 1", 1-1/4" Spindle)
＊Tilting Angle：-5 ~ 90 ~ +45 Degree
＊Max. Table Insert Diameter：220mm(8-5/8")
＊Table Size：700 X 900mm(27-1/2" X 35-1/2")
＊Sliding Table Size：900 X 230mm(35-1/2" X 9")
＊Sliding Table Travel：830mm(32-1/2")
＊Fence Size：125 X 900mm(4-15/16" X 35-1/2)
