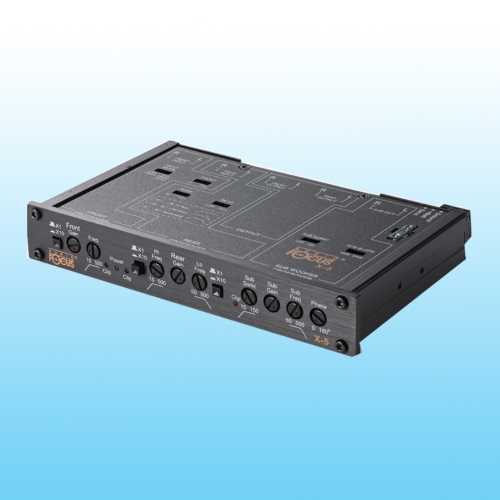

HIGH-PERFORMANCE MOBILE ELECTRONIC CROSSOVER
Hot- Model:
- X-5
- Country of Origin:
- Taiwan
- Material:
- Aluminum sheet
- Color:
- Black
Detail Specifications / Descriptions
X-5 An electrical crossover is like an active crossover. It won’t consume any power. It cuts frequency into several bandwidth with more accurate and correct sound stage and dynamics. It channels frequencies appropriately to amplifiers, which powers speakers to lifelike effect.
X-5
Signal input： RCA four channels inputs six channels outputs
Crosstalk: High Pass/Low Pass/Full Pass/Band PassSignal output: 9V
Channel separation：75db
S/N ratio： >100db
Frequency response： 20Hz~30KHz
High PASS 15Hz~500Hz x10=150Hz~5KHz
Low PASS 50Hz~500Hz x10=500Hz~55KHz
1. input mode can choice 2 or 4 channels
2. rear output can swift hi-pass/ low-pass / band-pass/full
3. can use to 2-way fading front and rear、3-way with active filtering for mid-bass and component set 、3-way with active filtering for mids and tweeters
