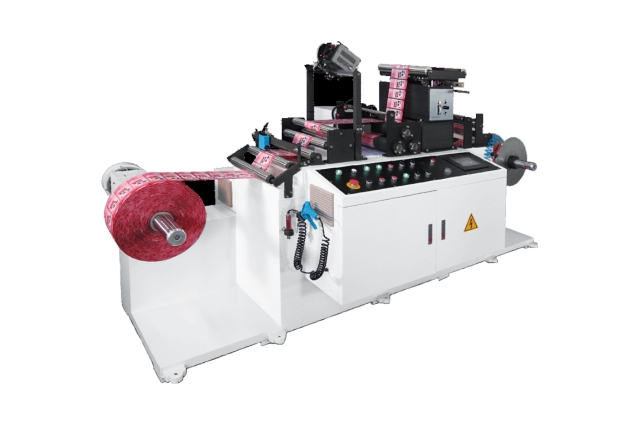

PVC Shrinkable Label Making Machine
- Model:
- REF-Q30/REF-Q40
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
Model No.：REF-Q30 REF-Q40
Max. Parent Web Width：300 mm 400 mm
Max. Parent Web Diameter：800 mm 600 mm
Max. Machine Speed For Printing Inspection：250 M / min 200 M / min.
Max. Machine Speed For Sealing Inspection：80 M / min. 80 M / min.
Unwind / Rewind Core Inner Diameter：3" & 6" 3" & 6"
Installation Information
(For Standard Specification) Net Weight：600 kg 700 kg
Area Required：L3800 x W2100 x H1400 (mm) L4000 x W2300 x H1500 (mm)
Power As request：As request
Air：6 kg / cm3 6 kg / cm3
