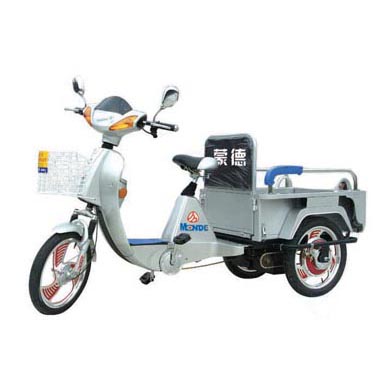

Electric Tricycle

Model: TDS01ZHWG
Overall dimension: 2100×800×1220
Wheelbase(mm): 1400
Track(mm): 650
Ground clearance(㎏): 200
Rated load mass:(mm): 100
Max speed(㎞/h): 20
Lead-acid maintenance-free battery: 48V17Ah
Controller: 48V/550W
Motor: 48V/350W
Grade ablity(°): 15
Max continous drive(㎞): 60
Performance characteristic:
1. The structure design is compact, small and elegant
2. Car quality, electrophoretic baking varnish, full luster, aging slowly and 　non-fading.
3. Mond special-purpose high-power non-brush integrative wheel motor has high 　dynamics, and strong grade ability.
4. The frame applies manganese steel material, tough and durable.
5. Uitra static sound controller reduces the driving noises, making driving 　more comfortable
