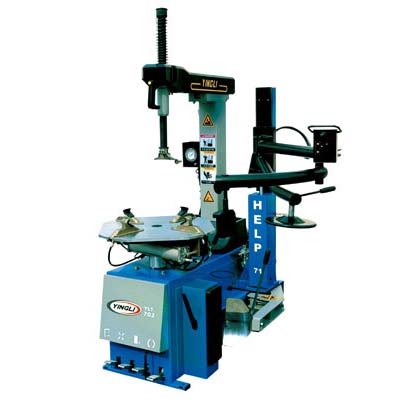

Tire Changer
- Model:
- YLT-702+Helper71-R
Detail Specifications / Descriptions
Features:
Self-centering device
Slide with step function
Turntable with scale
Tool box under the pole
Aluminum cylinder body
Vertical and horizontal arms with pneumatic dual locking device
Pole is tiltable
Tubeless Inflating device
Complete with air reserve tank
Side inflating control pedal
Manometer for inflating pressure control equipped with deflating push button
Optional Helper-R
Technical Data
Rim clamping Outside: 11〞-20〞
Rim clamping Inside: 13〞-24〞
Wheel Width: 13〞
Max.Tire Diameter: 1150mm(44〞)
Operating Pressure: 10bar 145psi
Turntable Height: 780mm
Power Supply: 110/220/380V-3ph
Motor Power: 1 .1/1.1/0.75kw
Net Weight: 295kg
