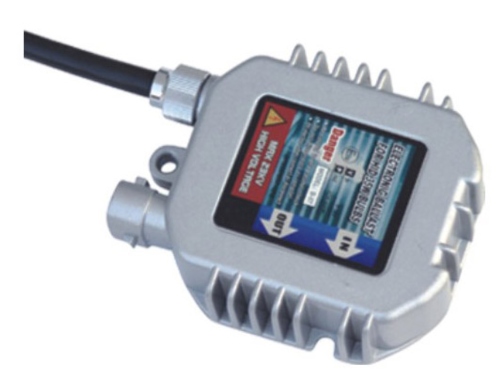

HID Ballast
Detail Specifications / Descriptions
1) High and reliable quality of ballast
2) Input voltage range : DC 8 - 16V
3) Rated voltage : 13. 5V
4) Max. start voltage : 23kV
5) Input current : 3. 2A
6) Output power : 35W
7) Working temperature : -40 ~ 105 Celsius system.
8) The ballast matches lamps as H1, H3, H4, H4 (H / L), H7, H8, H9, H10, H11, H13, 9004, 9005, 9006, 9007, 880, 881
The leave factory testing item of the product ------:
1. 6 hours continuous working aging test.
2. Connection circuit protection test.
3. Short circuit protection test.
4. Lack of voltage protection test.
5. over voltage protection test.
6. Flash light concussion test.
7. Quakeproof capability test.
8. cold.warm boot test.
9. Polarity protection test.
10. EMC anti-jamming test.
