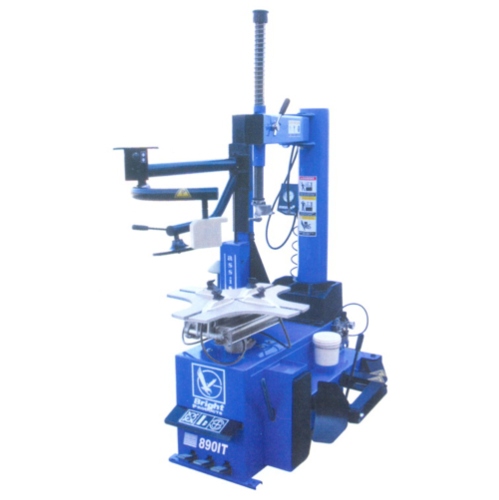

Car Tire Changer
- Model:
- JMTC-890IT + PL330
Detail Specifications / Descriptions
Product Specification :
(1).Rim clamping from outside: 10~20 inch
(2).Rim clamping from inside: 12~23 inch
(3).Bead-breaker force: 2500kgs
(4).Max. wheel diameter: 1250mm
(5).Wheel width: 3~16 inch
(6).Operating pressure: 8~10 bar
(7).Motor power: 1.1/0.75kw
(8).Power supply: 110/220/380V - 3ph
Note :
(1). Self-centering device.
(2). Pneumatic bead breaker adjustable in 2 positions.
(3). Slide with step function
(4). Tool box under the pole.
(5). Tubeless inflating device.
*Air reserve tank locates in the pole.
*Inflating nozzles for tubeless inflating from the slides.
*Side inflating control pedal.
*Manometer for inflating pressure control equipped with deflating push button
