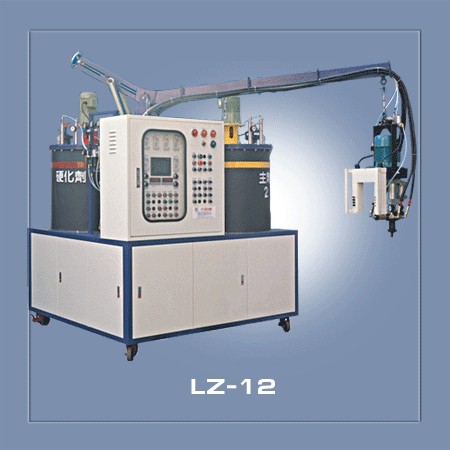

PU Pouring Machine

Introduction :

POLYOL and ISO are transported into a mixing head through individual measurement of a precise gear pump. Then, it is mixed by high speed stirring to achieve the pouring principle. Thus can be broadly used in pouring shaping of various versatile PU products for motor, aviation, furniture, sports goods, electronic, electrical products, freezing equipment, shoe materials, architect materials, etc.


Applications :

Car Seat Cushions, Headrests, Bumper, Toys, Armrests, Fake Veneer Wood, Sports Goods, Shoe, Air Filters, Stuffed Material, Heat-Insulation Material.


Material Tank :

A.
Materials : SUS304

B.
Dual tank structure provides cool and hot water circulating temperature control.

C.
Equipped with heating temperature system. If necessary, a freezing system can be added.

D.
Stirring device.

E.
Manual feeding inlet. If necessary, an automatic feeding system can be added.

F.
Liquid level sensor device of material tank.



Measurement Unit :

A.
Adopting precise gear measurement pump, tubing placement pressure controller and pressure display.

B.
Quantitative output, multi-selection measuring set. Measuring set can be designed depending on number of sets needed.

C.
Wide range of mixing ratio with adjustment.



Mixing Head :

A.
Simple structure, easy to maintain, convenient to operate.

B.
Precise switch valve motion coordinates with quantitative revolving output of pump so as to ensure raw material to simultaneously pour out viscosity.



Control Unit :

A.
Adopting programmable controller to display various operation procedures and trouble suggestion.

B.
If necessary, a touch-control screen can be added which displays motion process and is easy for amending setting value.

C.
Revolution, temperature and pressure value of pump can be clearly checked from the easy-to-operate electric control case.
