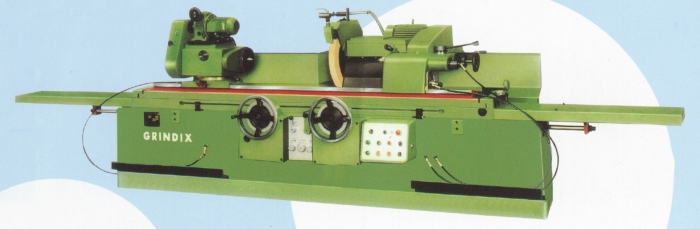

Hydraulic Universal Cylindrical Grinder Light to Medium Duty
- Model:
- UA, UH -400/1600, 1800, 2000
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
Features:
* Heavy bed are subtantially ribbed provides a rigid base to carry all units and possesses great stiffness, sufficient slide way length to support the table in all position.
* Can grind light to medium size straight faced rolls, machine columns, printing cylinders and car axles.
* Sloping table top allows the workhead and tailstock to be moved laterally without losing alignment.
* Hydraulic wheelhead control with quick approach and return.
* Wheelhead spindle are pressure lubricated and a pressure switch is electrically interlocked with wheel motor.
* Hydraulic table traverse have end dwell at both end of stroke and equipped with independent stepless speed control for both directions.
* Workhead spindle drive from disco adjustable speed motor.
* Swivel table equipped with a dial indicator function with adjusting device and aids in making exact setting.
* Air bearing provides convient means of moving the workhead and tailstock.
Standard Equipment:
* Face and side wheel dressing attachment
* Grinding wheel flange
* Wheel balancing arbor
* Wheel flange removal
* Cemented carbide center
* Levelling screws and plates
* Splash guard
* Wheel dressing tool
* Standard grinding wheel
* Touch-up paint
* Table swivel indicating dial gauge
* Standard tools and tool box
Extra Equipment:
* Work rest (2-point steady rest)
* Grinding wheel balancing unit
* Magnetic coolant filter
* Radius wheel dressing attachment
* Angle wheel dressing attachment
* Extra grinding wheel
* Extra wheel flange
* 3-Jaw self-centering chuck with back plate
* 4-Jaw self-centering chuck with back plate
Types Selection:
* UA-Hydraulic table traverse, wheelhead approach by manual.
* UH-Hydraulic table traverse, wheelhead rapid approach and retraction.
