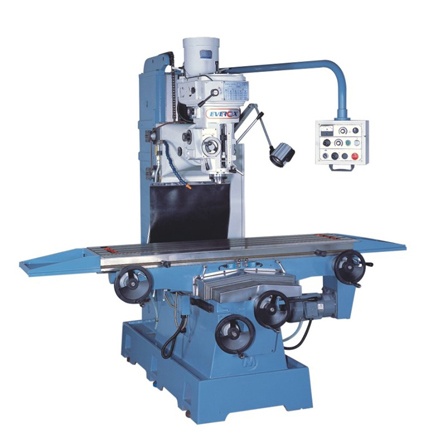

HEAVY DUTY BED TYPE VERTICAL MILLING MACHINE
Hot- Model:
- EM-5V
Detail Specifications / Descriptions
TRAVEL:
◎Longitudinal Travel-X:1000mm
◎Cross Travel-Y:500mm
◎Vertical Travel-Z:520mm/720mm(opt.)
◎Spindle to table(F):130-650mm/130-850mm(opt.)
TABLE:
◎Table Size:1524×305mm(60”×12”)/ 1524×406mm(60”×16”)opt.
◎T Solt:3×16×65mm(4×16×70mm)opt.
◎Max Load on Table:800kgs
SPINDLE:
◎Spindle Taper:NT#40
◎Quill Diameter:110mm
◎Quill Travel Vertical:140mm
◎Quill Feeds:0.035mm,0.07mm,0.14mm/REV
◎Spindle Speed:L:65-480,H:500-3580(16 steps)
TRAVERSE RATES:
◎Rapid Traverse Rates:X,Y:1500mm/min Z:1300mm/min
◎Traverse Rates:X,Y:25-1000mm/min Z:21-860mm/min
MOTOR:
◎Spindle Motor:5HP/3.75KW
◎X,Y axis Motor:1HP/0.75KW
◎Z axis Motor:0.5HP/0.375KW
