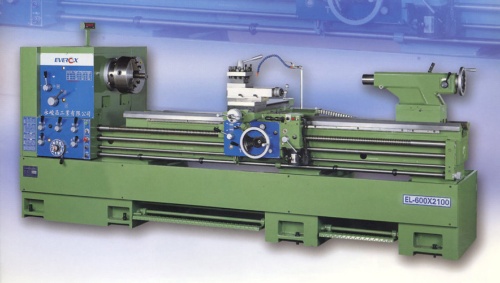

HEAVY DUTY PRECISION LATHE

HEAVY DUTY PRECISION LATHE

Model:
EL-600×2100

Detail Specifications / Descriptions

◎Swing over brd: 610 mm(24")
◎Swing over cross slide: 370 mm (14-7/8")
◎Swing over gap: 880 mm(34-3/4")
◎Length of gap from spindle nose: 345 mm(13-1/2")
◎Length of gap: 205 mm(8")
◎Distance between centers: 1100/ 1600/ 2100/ 3100/ 4100/ 5100 (43"/ 63"/ 82"/ 122"/ 161"/ 200")
◎Width of bed:410mm(16-1/8”)
◎Spindle bore: ø83mm(3-1/4”);Ø 105mm(4-1/8”)
◎Spindle nose:A2-8 or D1-8; A2-8 or D1-8
◎Lead screw dia. & Threads perinch:Ø 45mm(1-3/4”)×2 T.P.I. or P12mm(opt.)◎Longitudinal feeds:0.05-0.7m/m
◎Cross feeds:0.025-0.35m/m
◎Inch thread:2-28 Thread/hr D.P.4-56
◎Mertric thread:0.8-14mm/Thread M.P. 0.5-7
◎Compount slide tra:370m/m(14-5/8”)
◎Compound rest travel:165mm(6-5/8”)or 250mm(9-3/4”)opt.
◎Tailstock spindle travel:200mm(7-7/8”)
◎Quill diameter:Ø 80mm(3-1/8”)
◎Taper of center:M.T. No.5
◎Main motor:15HP×4P(std.)or 15HP×6P,20HP×4P(opt.)

HEAVY DUTY PRECISION LATHE
