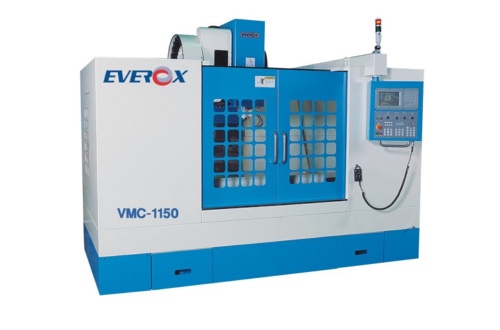

VERTICAL MACHINING CENTER
Hot- Model:
- VMC-1150
Detail Specifications / Descriptions
TABLE:
◎Table surface:1300×570mm
◎T-slot:18×5×100mm
◎Max,table load:800kgs
TRAVEL:
◎X,YZ-axis travel:1150×650×600mm
◎Di,stance from spindle end to table:140×740mm
◎Distance from spindle center to column:660mm
SPINDLE:
◎Spindle nose taper:BT40/CAT40
◎Spindel speed:6000rpm(standard) 8000/10000rpm(optional)
RAPID TRAVERSE:
◎3 Axes cutting feed rate:5000mm/min
◎3 Axes slideways:Hardened ways
◎3 Axes rapid traverse:18m/min
ATC:
◎Tool storage capacity:20 tools armless type(optional) 24 tools arm type(optional)
◎Tool selection:Bi-directional shortest route
◎Max, tool diameter × length(adjacent tool):80×250mm
◎Max,tool weight:7kgs
◎Tool shang :BT40-CAT40
MOTORS:
◎Spindle drive motor:11kw/7.5kw
◎X,Y,Z-axis servo motor:HA100
◎Coolant pump motor:3/4HP
