Microphone Connectors

Microphone Connectors

Model:

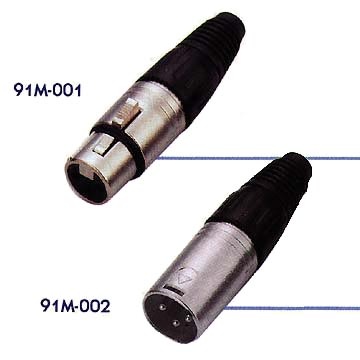

91M-001/002

Detail Specifications / Descriptions

Key Specifications/Special Features:
Contact resistance: 50 Mohm max. per pole
Current rating: 3 Pole-15A, 4 Pole-10A, 5&6 Pole-7. 5A, 7 Pole-5A @125AC
Insulation resistance: 1000 Mohm min.
Electronic withstanding voltage: 1000 V(RMS)
Insertion forces: 7 lb. max. , 5 lb. nominal
Withdrawal forces: 7 lb. max. , 5 lb. nominal
Shell: die-cast zinc
Satin nickel finish on all shells, except on black shells.

Primary Competitive Advantages:

International Approvals
Experienced Technical Staff
Brand-name Parts
Product Performance

Delivery Details:

Lead Time: 2-3 weeks
