Computerized 4-6  Color Printing, Coating & Drying M/C

Computerized 4-6 Color Printing, Coating & Drying M/C

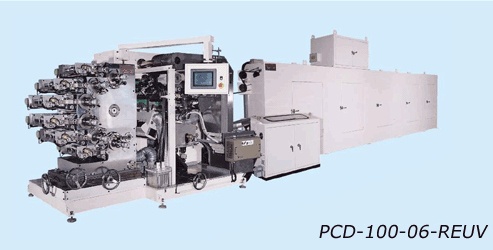

Model:
PCD-100-06-REUV

Detail Specifications / Descriptions

1.Newly tube input system for speediness and convenience.
2.Plate adjusted motor additional (for little move).
3.The plate adjust mechanism which set outside It's can adjustment during running.
4.Cooling system additional for ink transmission mechanism that can obtain stable quality when on high speed printing.
5.Transfer roller advance and retreated by wormgear that pressure equably and stable.
6.Ink roller motor individually can control ink output.
7.Two stage clear out the static with corona and brush for tube surface.
8.Coating system put on the bottom that easy for maintenance & cleanning.
9.If mandrel no tube then no printing and coating.
10.Control by unique motor that transfer in sureness. It also can control transfer printing wheel trun-plate, and chain individually.
MAIN SPECIFICATIONS:
1.Main Motor : 10 HP with Inverter
2.Micro move Motor : 1 HP
3.Ink Adjustment Motor :200 w X 6 pcs.
4.Coating Motor : 1/2HP
5.Idler Motor : 90 w
6.Printing (Ink) lnk : UV Ink
7.PrintingPate : Copper, Zinc, Resin
8.Corona Capacity : 2kw
9.UV Dryer Capacicy : 5kw. 160W/cm2
10.Printing Dia : Ø19~50mm
11.Printing Length : 200mm (Max)
12.Printing Speed : 90-100 pcs/min
13.Oven Heater : 1.2 kw X 16 pcs.
14. Air Consumption : 5~7 kg/cm2
15.Power Consumption : 51 kw
16.PEG Number : 1500 pcs, Pitch : 7 Degree
17.Machine Size : 12000 X 18000 X 2150 mm

Company: BONMART ENTERPRISE CORP.
Telephone: 886-2-2299-4281
Fax: 886-2-2299-4284
URL: www.bonmart.com.tw
