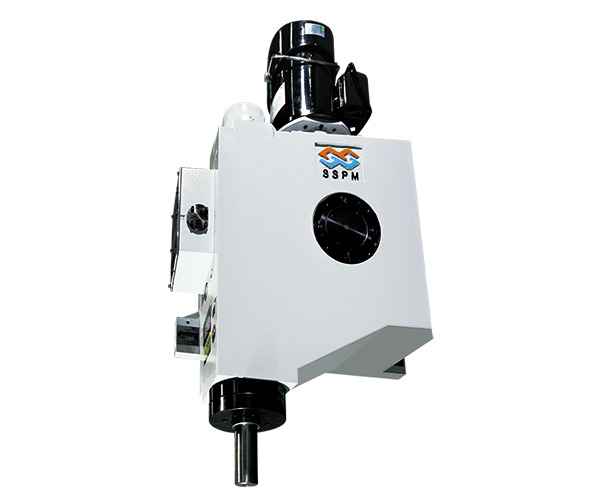

Automatic Tool-Changing Mechanism Series / ATC Series

1. The output shaft has small inertia and structural volume, but large output, and it is capable of being combined with various actions.
2. It has high precision and a wide range of indexing and is capable of meeting the design requirements of the machine, designing 50 to 90 degrees of the buckling tool angle, and arbitrarily matching high-speed action while being used as a dynamic curve.
3. The grasping knife has stable and real speed, low noise and accurate buckling and slotting tools, which relatively improves theworking accuracy and service life of the principal axis.






Unit
SA301
SA402
SA502


Tool Change Time






50Hz
sec
0.99
1.56
2.90


60HZ
sec
0.83
1.31
2.45


Stroke of Arm Litting
mm
A085
A115
A165



Max. Load
kg
4.5
8
20


Weight
kg
83
107
185


Power
kW
0.25 (1/3HP)
0.56 (3/4HP)
1.1 (1.5HP)


Accuracy






Positioning
deg
60º
60º
60º


Repeatability
deg
10º
10º
10º


Travel
mm
0.10
0.10
0.10
