Non-backlash Roller Cam Series / AR Series

1. Highly precise prepressing radial bearings with vapor-pressure type brake locking are used to increase the locking pressure, thus ensuring resistance to cutting forces.

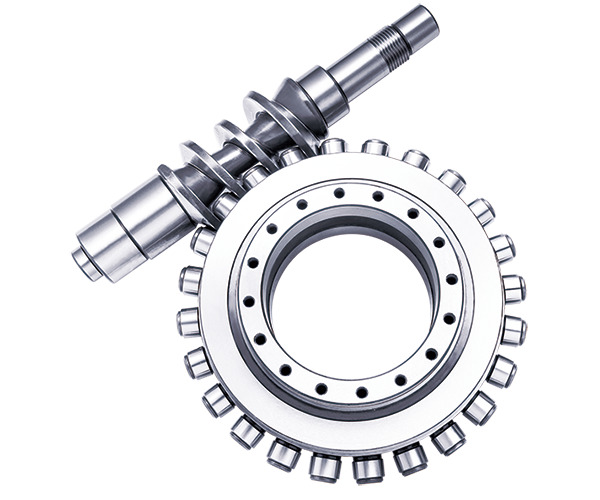

2. An extremely accurate roller cam is highly efficient in any driving location, easily adjusts back clearance, and can rotate on line with a CNC machine or match a single-shaft controller for processing.






Unit
AR-135
AR-160
AR-200
AR-250
AR-320


Table Diameter
mm
135
160
200
250
320


Center Height
mm
110
135
160
160
210


Spindle Hole
mm
Ø30H7/Ø15
Ø60H7/Ø45
Ø60H7/Ø45
Ø75H7/Ø70
Ø75H7/Ø70



T-slot Width
mm
12H7
12H7
12H7
12H7
14H7


Guide Key Width
mm
14H7
14H7
18H7
18H7
18H7


Servo Motor
Fanauc

α2i
α4i
α4i
α8i
α12i


Mitsubishi

HF75
HF104
HF104
HF154
HF204S


Total Speed Reduction Ratio

30
36
36
60
60


Max, Rotation Speed (3000rpm)
rpm
100
83.3
83.3
50
50


Output Rated Torque
kb/m
10
18
18
60
90


Resource
Pneumatic
kg/cm2
5
5
5




Hydraulic
kg/m



30
30


Output Braking Torque
sec
8
14
13
90
150


Indexing Accuracy
sec
40
20
20
20
20


Repeatability

4
4
4
4
4


Min. Increment

0.001º
0.001º
0.001º
0.001º
0.001º


Allowable Work Weight
Vertical
kg
20
70
70
100
150


Horizontal
kg
45
140
140
250
350


Allowable Load
(When Table is Clamped)

kgf
600
800
800
1400
2000



Fxl
kgf-m
8
13
13
150
260



Fxl
kgf-m
15
40
40
100
200


Allowable Work Inertia
kg-m2
0.1
0.48
0.48
1.95
3.7
