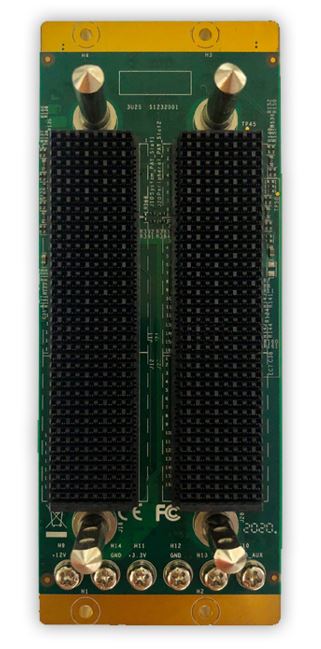

3U VPX Backplane:3U 2-Slot

3U VPX Backplane:3U 2-Slot

Model:
B203202001
Country of Origin:
Taiwan

Detail Specifications / Descriptions

Specifications:
● Features:
- Compliant to VITA 46.0 baseline specification
- Backplane Profile : BKP3-DIS02-15.2.8-n
- OPEN VITA 65 Specification
- 1 x Double Fat Pipe(Mesh) Data Plane
- 2 Slots VPX, 1 Payload Slot , 1 Peripheral Slot
- M3 studs power entry
- Reference clock
- Aux clock
- System Management Interface(I2CA, I2CB)
- Input current per backplane
- VS1 = 18A
- VS2 = 18A
- VS3 = 30A
- Order Number: B203202001
- Customization available
● Specifications:
- PCB size : 128.5 mm x 51.56 mm x 5.4 mm
- 5 HP(25.40 mm) from slot to slot
- Operating temperature: -40° - +85°C
- Storage temperature: -55°C - +85°C
